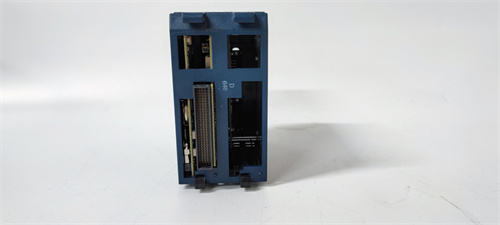

IC695CPE310-ACAT

Description

argument
Processor: 1.1GHz Atom processor
Memory: 10 MB
Embedded Ethernet interface: Supports both 10Mb/ s and 100MB/s connections
Serial ports: RS-485 and RS-232
Block support: Up to 512 blocks, each up to 128 KB
Communication protocols: Modbus RTU slave, SNP and serial I/O protocols
Programming language: ladder diagram, structured text, C or function block diagram
specification
Brand: GE
Model: IC695CPE310-ACAT
Series: GE Fanuc PACSystem RX3i series
Size and weight
Dimensions: 170mm x 105mm x 32mm
Weight: About 120g
trait
High performance: It has a 1.1GHz Atom processor, which is about three times faster than older cpus
Multi-protocol support: Serial port support Modbus, RS-232, RS-485 and other communication protocols
High data transmission rate: The serial port supports efficient data transmission and meets the real-time requirements
Easy to configure and control: It can be configured and controlled programmatically to define communication parameters, data formats and communication processes
Multi-purpose: can be used for data acquisition, control, remote monitoring and other serial communication tasks
Data processing capability: The processing, parsing and storage of data received from serial ports and transmitted to the control system or other target devices
Efficient power management: Input voltage range 12-48VDC, output voltage range 5VDC, maximum output current 10A, efficiency greater than 90%
Environmental adaptability: Operating temperature -20°C to +50°C, storage temperature -40°C to +70°C, ambient humidity 5% to 95% relative humidity (no condensation)
