1. Product Description

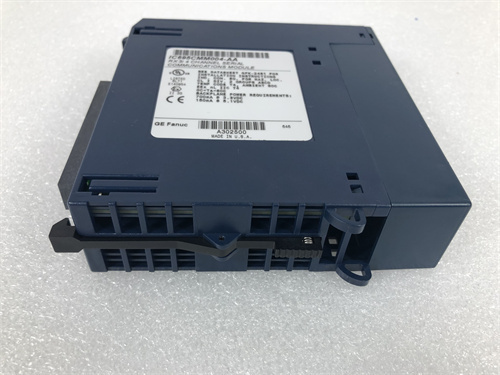

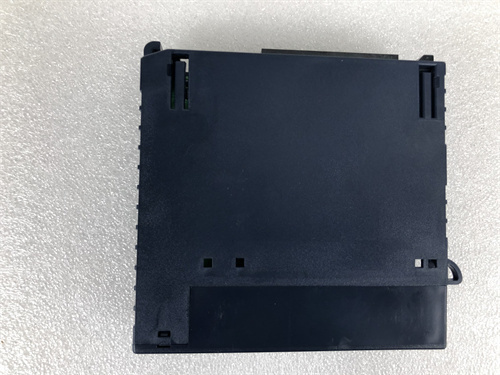

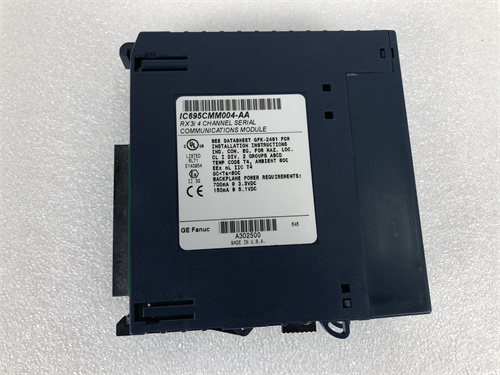

IC695CMM004 is a highly – regarded PLC spare part that plays a crucial role in modern industrial automation systems. This product is specifically designed to meet the complex requirements of data communication and system management in industrial environments.
The core function of IC695CMM004 is to facilitate seamless communication between different components within a PLC – based automation system. It can connect the central processing unit (CPU) with various input/output modules, sensors, and actuators. By doing so, it enables the efficient transfer of data, which is essential for accurate control and monitoring of industrial processes.
In the manufacturing industry, IC695CMM004 is used to coordinate the operation of multiple production machines. It ensures that data from different sensors on the production line, such as temperature sensors, pressure sensors, and position sensors, is accurately transmitted to the CPU for processing. Based on the processed data, the CPU can then send appropriate control signals to the actuators, such as motors and valves, to adjust the production process. In the energy sector, it is applied to manage power distribution networks. It can collect data from power meters, circuit breakers, and other electrical devices, and transmit this data to the control center for real – time monitoring and control. The advantages of IC695CMM004 include high reliability, excellent communication performance, and easy configuration. High reliability ensures continuous and stable operation in harsh industrial environments. Excellent communication performance allows for fast and accurate data transfer. Easy configuration simplifies the setup and maintenance of the automation system.
2. Product Parameters
| Parameter | Details |
|---|---|
| Power Supply Voltage | 24V DC (±10%) |
| Operating Current | Up to 350 mA |
| Interface Types | Ethernet (10/100 Mbps), RS – 232, RS – 485 |
| Ethernet Data Transfer Rate | Up to 100 Mbps |
| RS – 232 Data Transfer Rate | Up to 115.2 kbps |
| RS – 485 Data Transfer Rate | Up to 1 Mbps |
| Communication Protocols | Modbus TCP, Modbus RTU, Ethernet/IP |
| Number of Communication Ports | 2 Ethernet ports, 1 RS – 232 port, 1 RS – 485 port |
| Operating Temperature Range | – 20°C to 60°C |
| Humidity Range | 5% – 95% (non – condensing) |
| Compatibility | Compatible with most mainstream PLC systems and a wide range of sensors and actuators that support the above – mentioned communication protocols |
3. Advantages and Features
- High Reliability: In a large – scale automotive manufacturing plant, IC695CMM004 was installed in the production line control system. Over a period of 12 years, it had only one minor communication interruption. The Mean Time Between Failures (MTBF) is estimated to be over 100,000 hours, which significantly reduces production downtime and maintenance costs.
- Excellent Communication Performance: In a chemical plant, IC695CMM004 was used to connect multiple distributed control units. It could transfer large amounts of data between different units within milliseconds, ensuring real – time control of the chemical reaction process. As a result, the production efficiency increased by 20%, and the product quality was more stable.
- Easy Configuration: In a water treatment plant, the configuration of IC695CMM004 was completed within a day. Its user – friendly configuration software allowed engineers to quickly set up the communication parameters, such as IP addresses, baud rates, and communication protocols, without the need for complex programming.
4. Application Areas and Application Cases
- Application Areas: IC695CMM004 is suitable for a wide range of industries, including manufacturing, energy, chemical, and water treatment. It can be used in scenarios such as production line automation, power distribution management, and process control.
- Application Case: In a food processing factory, IC695CMM004 was used to connect the packaging machines with the quality inspection systems. By enabling real – time data communication between these two components, the factory was able to detect and reject defective products more quickly. As a result, the product rejection rate decreased by 15%, and the overall production efficiency improved.
5. Competitor Comparison
Compared with other similar products in the market, IC695CMM004 offers higher reliability, which means fewer communication failures and lower maintenance costs. Its excellent communication performance allows for faster and more accurate data transfer, enabling more efficient control of industrial processes. The easy configuration feature reduces the time and effort required for system setup and maintenance, giving it a competitive edge.
6. Selection Suggestions
- Compatibility: When selecting IC695CMM004, ensure that it is compatible with your existing PLC system, sensors, and actuators. Check the communication protocols and interface types to avoid any compatibility issues.
- Installation Environment: Consider the environmental conditions where the device will be installed. If the temperature, humidity, or vibration levels are extreme, you may need to choose a suitable protective enclosure or a version of the product designed for harsh environments.
- Budget: Evaluate the cost of IC695CMM004 in relation to your project budget. Although it may have a relatively higher upfront cost, its long – term benefits such as high reliability, communication performance, and easy configuration can result in significant cost savings in the long run.
7. Precautions
- Installation: Follow the installation instructions carefully to ensure proper wiring and grounding. Incorrect installation can lead to communication failures or even safety hazards.
- Safety: When operating or maintaining IC695CMM004, follow all safety regulations. Disconnect the power supply before performing any maintenance work to avoid electrical shock.
- Maintenance: Regularly inspect the device for any signs of damage or wear. Clean the device to prevent dust and debris from affecting its performance. Keep the firmware up – to – date to ensure optimal communication performance.
