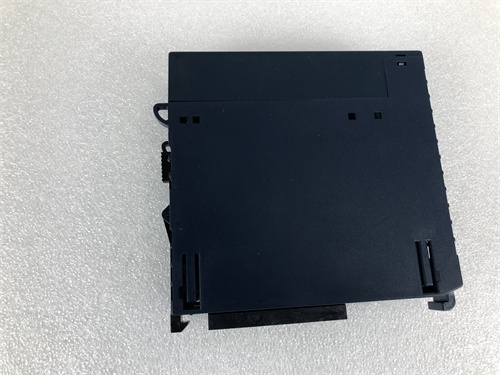

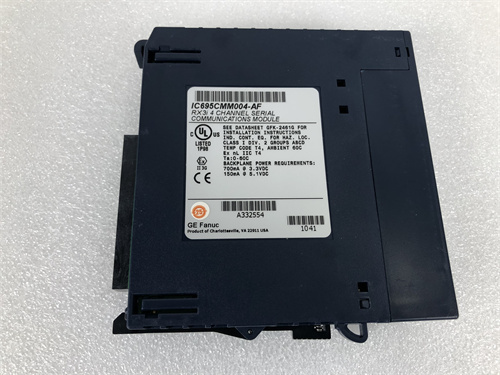

IC695CMM004

Description

effect
Industrial automation: The IC695CMM004 module is mainly used in the field of industrial automation, providing reliable serial communication functions to achieve data transmission and communication between devices.
System Monitoring and control: This module can be used to monitor and control various equipment and processes in industrial automation systems to ensure the stable operation of the system.
Compatibility: Compatible with other modules and devices in the GE Fanuc RX3i PACSystems family for easy system integration and expansion.

Size and weight
Dimensions: 4.88 inches x 3.28 inches x 1.77 inches (124 mm x 83 mm x 45 mm).
Weight: 0.5 lb (0.23 kg), or 2.1kg (may include packaging or additional parts).
trait
Software configurable: Support RS-232, RS-485 and RS-422 serial communication.
Isolation design: Port to backplane isolation is 250 V AC continuous, port to port isolation is 500 V DC continuous and 710 V DC up to 1 minute.
Fault status report: Provides the fault status report function.
Pluggability: The module can be plugged in and out when the chassis is powered on.
Firmware upgradable: The module firmware can be upgraded.
Communication task support: Each communication port supports 64 communication tasks, each port has 224 modules and communication status bits and 128 modules and communication control bits.

argument
Number of ports: 4 independent, isolated serial ports (some say 8, but most information points to 4).
Communication protocols: Support Modbus slave station, Modbus master station, serial I/O port, CCM slave port (1.10 or later), DNP3 master port or slave port (1.20 or later).
Communication rate: Baud rate from 1200 to 115.2 thousand baud.
Communication rate (another word) : 10/100 Mbps (but this may be dependent on other models or contexts).
Power requirements: 0.7 amps for 3.3 volts DC, 0.15 amps for 5 volts DC. The maximum overvoltage rating is +/-25 volts.
Input voltage range: 12-24 VDC, input current: 290 mA@24 VDC (another source).
specification
Module type: Serial communication module.
Series: GE Fanuc RX3i PACSystems series.
Chassis compatibility: Up to 6 serial communication modules can be installed in an RX3i PACSystems chassis.
