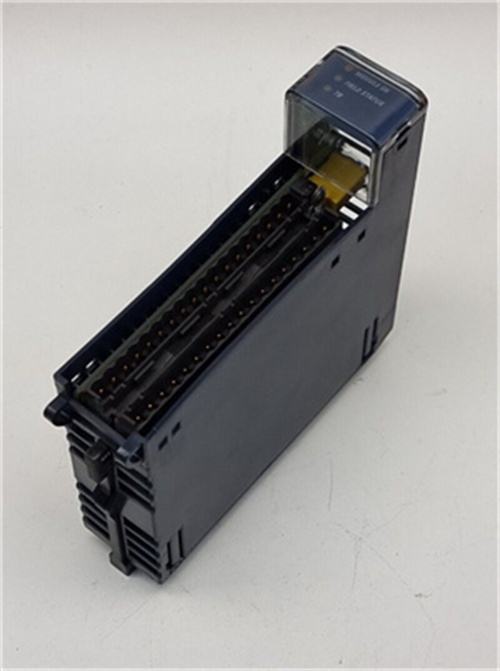

IC695ALG728

¥6,230.00

Parameters and specifications:
Output channels: Has eight (8) non-isolated output channels that can be configured for voltage and current.
Output signals: Generate +/-10 VDC, 0-10 VDC, 0-20 mA, and 4-20 mA output signals.
Resolution: Voltage resolution is 14.9 bits; The resolution is 0.20 bits at 15-9 mA; The resolution is 4.20 bits at 15-6 mA.
Communication protocol: Support for High Speed Addressable Remote Sensor (HART) protocol version 5.0.
Calibration accuracy: 15.25% of full scale at 0°C and 30.60% of full scale at 0°C.
Update time: The update time for each channel is 16 ms (HART communication) and 8 ms (not using HART communication).
Data format: The output data format can be configured as a floating point IEEE 16-bit or 32-bit integer using 32-bit registers.
Power requirements: An external power supply is required to operate, and the appropriate power supply must provide a maximum power current of 19.2-30.0 VDC and 250 mA.
Category:

Description

Parameters and specifications:
Output channels: Has eight (8) non-isolated output channels that can be configured for voltage and current.
Output signals: Generate +/-10 VDC, 0-10 VDC, 0-20 mA, and 4-20 mA output signals.
Resolution: Voltage resolution is 14.9 bits; The resolution is 0.20 bits at 15-9 mA; The resolution is 4.20 bits at 15-6 mA.
Communication protocol: Support for High Speed Addressable Remote Sensor (HART) protocol version 5.0.
Calibration accuracy: 15.25% of full scale at 0°C and 30.60% of full scale at 0°C.
Update time: The update time for each channel is 16 ms (HART communication) and 8 ms (not using HART communication).
Data format: The output data format can be configured as a floating point IEEE 16-bit or 32-bit integer using 32-bit registers.
Power requirements: An external power supply is required to operate, and the appropriate power supply must provide a maximum power current of 19.2-30.0 VDC and 250 mA.

Series:
The IC695ALG728 is part of Emerson Automation’s PACSystems RX3i family.
Features:
Configuration flexibility: Eight output channels can be fully configured for voltage or current operation.
High precision: provides high resolution voltage and current output signals.
Communication capability: Support HART 5.0 protocol to achieve remote configuration and communication.
Calibration accuracy: Calibration accuracy at specific temperatures meets the needs of industrial automation.
Update speed: Fast update channel data to ensure real-time performance.
Data format flexibility: Supports multiple data formats to meet different application requirements.

Functions:
The IC695ALG728 is used as an analog output module in industrial automation and control systems to provide voltage and current signal outputs for monitoring, control and communication applications.
