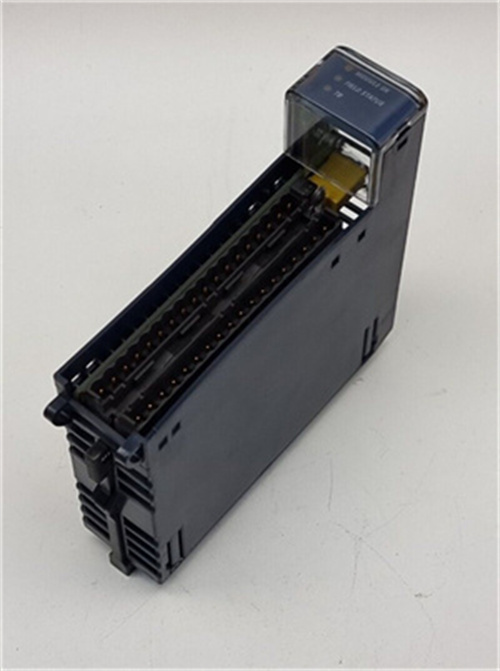

IC695ALG708

Description

‌Parameters and Specifications‌:

–‌Output Channels‌: 8 channels, configurable for analog output signals.
–‌Output Signals‌: Configurable for 0-20 mA, 4-20 mA current signals, and ±10V, 0-10V voltage signals.
–‌ADC Resolution‌: 15.6 – 15.9 bits, depending on the output signal type.
–‌Power Requirement‌: External 24 VDC power supply.
–‌Isolation Voltage‌: 2550 VDC, duration of 850 seconds.
–‌Max Output Load‌: 7 ohms.
‌Dimensions and Weight‌:

–‌Dimensions‌: Approximate size, as the exact dimensions may vary, but it is a single-slot module designed for rack mounting.
–‌Weight‌: Approximately 1.32 kg for a larger package of 10,000 units, but the individual module’s weight is likely much lighter1.

‌Series‌:

• Belongs to the PACSystem RX3i and RX8i series of programmable automation controllers (PACs), manufactured by GE Fanuc and now part of Emerson Automation Solutions.
  ‌Features‌:

–‌Configurable Outputs‌: Each channel can be configured for different current and voltage output ranges, providing flexibility for various applications.
–‌Alarm Settings‌: Allows for individual alarm settings, such as low, low-low, high, and high-high alarms, enhancing system monitoring.
–‌Output Bias‌: Provides output bias adjustment for fine-tuning or manually setting the output to desired levels.
–‌Module Fault Reporting‌: Built-in module fault reporting function with the ability to retain the last state or output default settings.
–‌Compatibility‌: Designed for use with RX3i PACs, requiring firmware version 3.5 or higher and configuration with Logic Developer software.
‌Applications‌:

–‌Industrial Automation‌: Widely used in industrial automation systems for process control, manufacturing, and machinery.
–‌Process Control‌: Suitable for controlling and monitoring various process variables, ensuring precise and reliable operation.
–‌Machine Control‌: Ideal for controlling machines and equipment with analog output signals, such as motors, actuators, and sensors.
