Description
Features:
–High Resolution: 24-bit ADC conversion resolution for precise analog signal measurement
–Flexible Configuration: Configurable as either 16 single-ended or 8 differential input channels
–Wide Signal Compatibility: Accepts a variety of current and voltage signals
–Advanced Filtering: Each channel has configurable filters (8Hz, 12Hz, 16Hz, 40Hz, 200Hz, 500Hz) to stabilize and minimize signal fluctuations
–Comprehensive Protection: Embedded protection includes open-circuit detection, overvoltage, and overcurrent protection
–Alarm Settings: Each channel can be configured with low, high, and extreme alarms, including rate-of-change alarms
–Auto-Calibration: Capable of performing automatic calibration during each startup
–Diagnostics: LED indicators for module status, field status, and terminal block status
Applications:
–Industrial Automation: Widely used in industrial automation systems for monitoring and controlling various processes
–Process Control: Ideal for applications requiring precise analog signal measurement and control
–Machine Monitoring: Integrates with PACSystem RX3i controllers for real-time monitoring and control of machines and equipment
Parameters:
–Input Channels: Configurable as 16 single-ended or 8 differential inputs
–Signal Compatibility: 0-20mA, 4-20mA, ±20mA current signals, and ±10V, 0-10V, ±5V, 0-5V, 1-5V voltage signals
–ADC Resolution: 24-bit
Specifications:
–Brand: Emerson Automation Solutions (formerly GE IP)

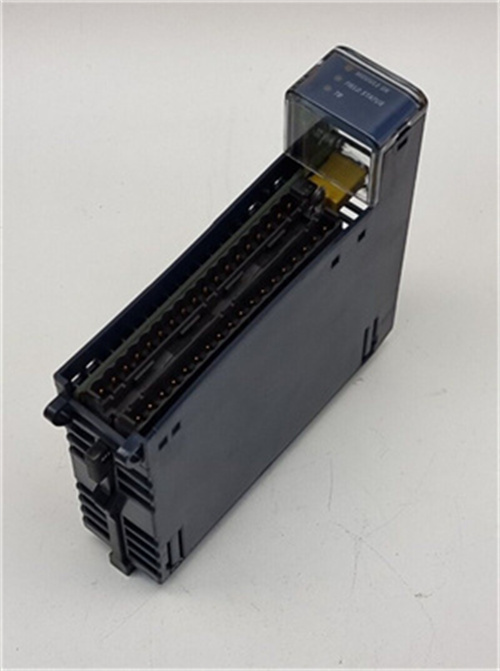

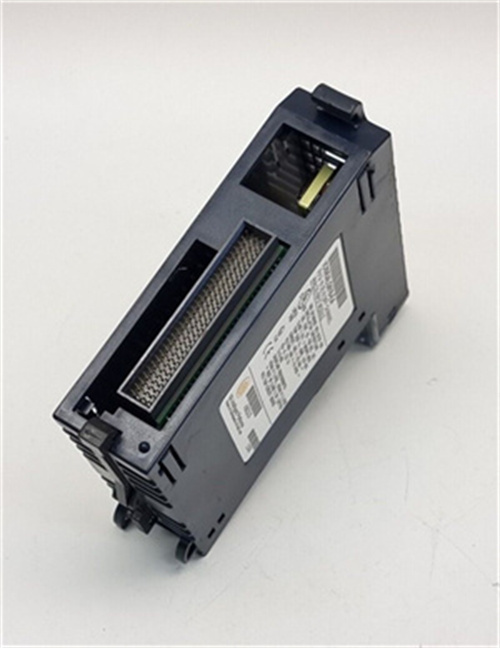

–Model: IC695ALG616-EA
–Series: PACSystem RX3i
–Mounting: Installs on RX3i universal backplane
Dimensions & Weight:
–Dimensions: Approximately 170mm x 105mm x 32mm1 or a similar compact size for industrial automation modules
–Weight: Approximately 120g1, lightweight for easy installation and handling
