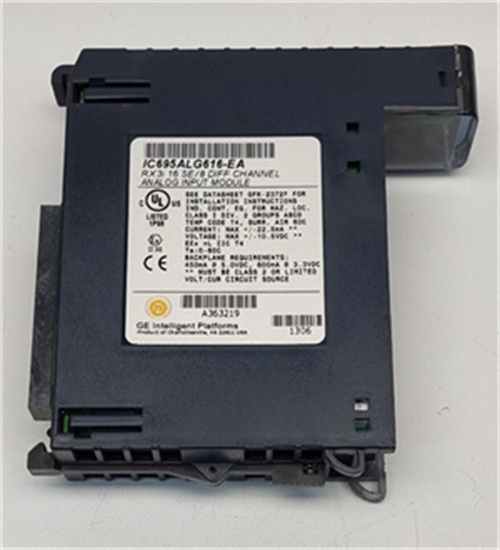

IC695ALG616

Description

Parameters and specifications
Type: Non-isolated differential analog input current/voltage module.
Input channels: 16 single-ended or 8 differential input channels.
Measuring range:
Current range: 0 to 20 mA, 4 to 20 MA, ±20 MA.
Voltage range: ±10 volts, 0 to 10 volts, ±5 volts, 0 to 5 volts, 1 to 5 volts DC.
ADC conversion resolution: 24 bits.
Programming language support: sequence function diagram (SFC), ladder diagram (LD), function module diagram (FBD), statement table (IL), structure text (ST), etc., while supporting C, Basic and other languages.
Size and weight
Dimensions: 34 x 145 x 140 mm.
series
The module is part of GE Fanuc’s (now part of Emerson Automation) RX3i PACSystems family.
trait
High configurability: Each input channel module can be configured with a different measurement range.
High conversion resolution: 24-bit ADC conversion resolution provides high-precision analog data conversion.
Multiple alarm Settings: Each channel can be individually configured with alarm Settings, including very low, low, high and extremely high alarms, and also supports positive and negative rate of change alarms.
Automatic calibration: The module is capable of performing automatic calibration during each startup.
Protection Settings: including open circuit detection, overvoltage and overcurrent protection.
Channel filters: Configurable channel filters to stabilize and minimize fluctuations.
effect
Analog input: As a key component in the RX3i PACSystems system, it receives and processes analog current and voltage signals.
Industrial automation: Widely used in industrial automation and control systems to achieve accurate analog signal acquisition and conversion.
