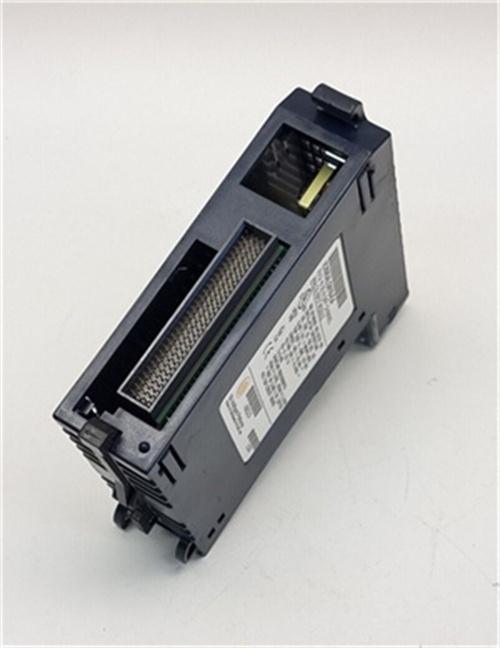

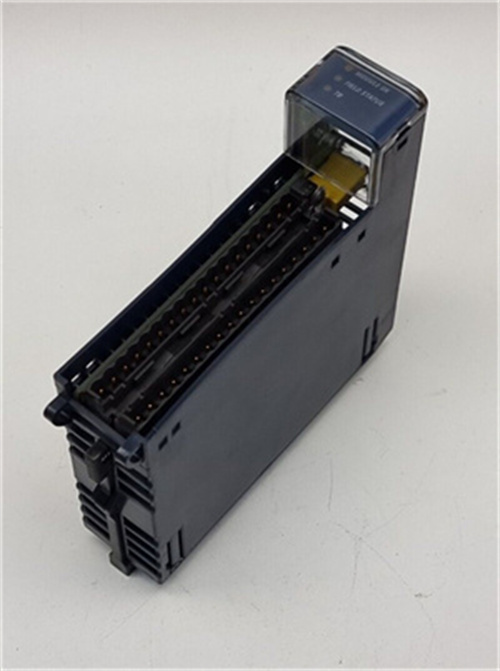

IC695ALG616

Description

argument
Analog input type: non-isolated differential analog voltage/current input module.
Input channels: 16 single-ended or 8 differential input channels.
Current range: 0 to 20 mA, 4 to 20 MA, ±20 MA.
Voltage range: ±10V, 0 to 10V, ±5V, 0 to 5V, 1 to 5V DC voltage.
Resolution: 24-bit ADC conversion resolution.
specification
Programming language support: Sequential Function Diagram (SFC), ladder diagram (LD), Function Module diagram (FBD), statement table (IL), and structured text (ST).
Size and weight
Dimensions: 34 x 145 x 140 mm (UL).
series
Series: RX3i PACSystems series.
trait
Configuration flexibility: Fully configurable software with no module jumper Settings.
Channel filters: Each channel has configurable channel filters to stabilize and minimize fluctuations, and configurable input filters include 8Hz, 12Hz, 16Hz, 40Hz, 200Hz, and 500Hz.
Automatic calibration: The ability to perform automatic calibration during each startup.
Protection mechanism: including open circuit detection, overvoltage and overcurrent protection.
Alarm Settings: Each channel can be individually configured with alarm Settings, especially extremely low, low, high and extremely high alarms.
Data saving: Converted analog data is saved as floating point 16-bit IEEE data or 32-bit integers using 32-bit registers.
effect
The IC695ALG616 module is used as an analog input module in the RX3i PACSystems family to receive and process analog signals, such as current and voltage signals, and then transmit this information to the control system for further processing and decision-making.
