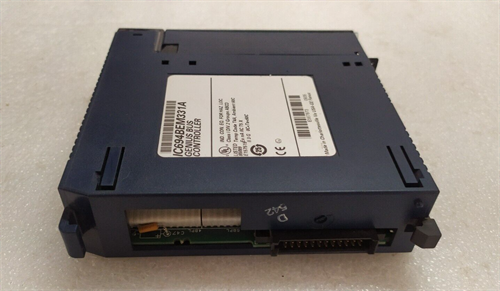

IC694BEM331

Description

trait
Advanced diagnostic function: it can accurately locate various faults and errors during the operation of the PLC system.
Flexible data exchange: The ability to exchange up to 128 bytes of data with each Genius I/O device and receive 128 bytes of global data.
Multi-host communication: Supports communication between multiple hosts using datagrams and global data.
Easy to install: Small size, easy to install into a complete PLC system.
Multiple cable types: Support Daisy chain cables or twisted pair cables.

effect
IC694BEM331 is mainly used to connect PACSystems RX3i and Genius serial I/O bus to achieve data exchange and communication.
It is capable of controlling devices on the Genius I/O bus, such as discrete, analog, and dedicated field devices, and communicating with the PLC through the Genius bus.
In industrial automation systems, this module plays an important role in ensuring smooth communication and data transmission between various devices and systems.

Parameters and specifications
Transmission rate: Support 153.5Kbaud standard/extended, 76.8Kbaud or 38.4Kbaud, transmission rate can be configured through software.
Bus terminal resistance: The bus terminal resistance required at both ends of the bus cable is 75, 100, 120, or 150 ohms.
Isolation rating: The isolation rating of the GE controller is 2000 volts and the transient common mode rejection isolation rating is 1500 volts.
Rated current: 300 MA.
Rated voltage: 5 V DC.
Size and weight
Size: Depending on the search results, the exact size may vary by supplier or packaging. For example, some suppliers provide a package size of 135413145mm, but this may be the size of the package box rather than the size of the module itself. The module itself is usually small in size and suitable for installation into a PLC system.
