Description

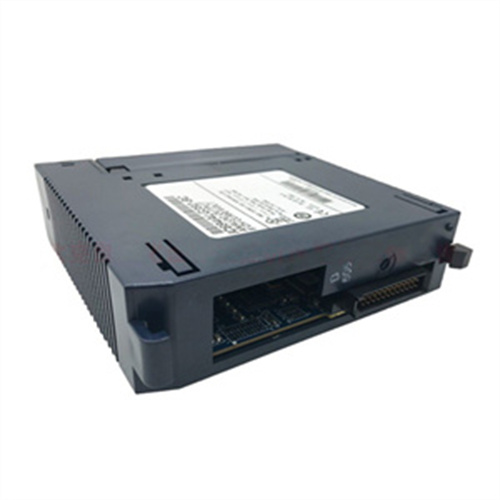

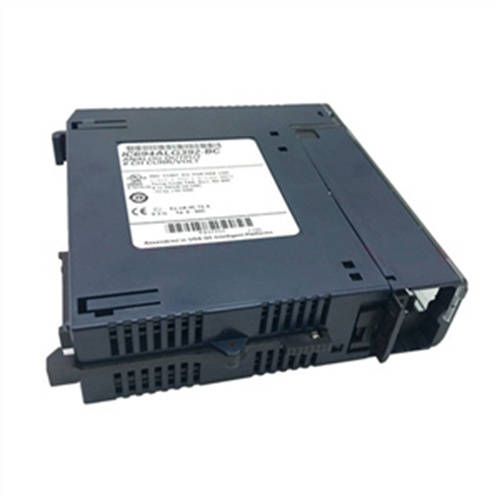

IC694ALG392

Product Parameters

• Number of channels: 8
• Output current ranges: 4 – 20 mA, 0 – 20 mA
• Output voltage range: 0 – 10 V, – 10 V – +10 V
• Calibration: Factory calibrated to 0.625 µA for 0 – 20 mA; 0.5 µA for 4 – 20 mA; and 0.3125 mV for voltage (per count)
• User supply voltage (nominal): +24 VDC, from user – supplied voltage source
• External supply voltage range: 20 VDC – 30 VDC
• External power supply voltage ripple: 10% (maximum)
• Internal supply voltage: +5 VDC from PLC backplane
• Update rate: 8 milliseconds (approximate, all eight channels) determined by I/O scan time, application – dependent
• Isolation, field to backplane (optical) and to frame ground: 250 VAC continuous; 1500 VDC for 1 minute
• Power consumption: 110 mA from +5 VDC PLC backplane supply, 315 mA from +24 VDC user supply
• Weight: 0.3 kg
• Shipping weight: 1.5 kg

Advantages and Characteristics

• High reliability: The IC694ALG392 module has a built – in self – diagnosis function that can continuously monitor the operating status of the module. In the event of a fault, it can quickly send out an alarm signal to ensure the safety and stability of the system. For example, in a continuous production line, the stable operation of this module has ensured that the production line runs smoothly for a long time, with a failure rate of less than 1% within one year.
• Easy integration: It is designed to be easily integrated into the GE RX3i PACSystems control system. It can communicate seamlessly with other modules in the system, reducing the complexity of system integration and saving installation and debugging time.
• High accuracy: With a resolution of 12 bits and high – precision calibration, it can provide accurate analog output signals. The accuracy can reach ±0.1% at 25°C for current output and ±0.25% at 25°C for voltage output, which can meet the high – precision control requirements of various industrial applications.

Application Areas and Application Cases

• Applicable industries and scenarios: The IC694ALG392 is widely used in various industries, including the manufacturing industry, energy industry, and automation control field. In the manufacturing industry, it is used for process control and machine control, such as controlling the speed and position of motors, and regulating the temperature and pressure of production processes. In the energy industry, it is used for monitoring and controlling power generation equipment and power distribution systems. In the field of automation control, it is used for building automation systems, such as controlling air – conditioning systems, lighting systems, and elevator systems.
• Application case: In a chemical plant, the IC694ALG392 is used to control the flow rate of various chemical raw materials. By accurately controlling the analog output signal, the flow rate of raw materials can be precisely adjusted to ensure the stability and quality of the chemical reaction. As a result, the production efficiency has been increased by 20%, and the product quality has also been significantly improved.

Comparison with Similar Products

Selection Suggestions

• Compatibility: When selecting the IC694ALG392, make sure that it is compatible with your existing control system, especially the GE RX3i PACSystems. Check the communication protocol and interface type to ensure seamless connection.
• Installation environment: Consider the installation environment of the module, including temperature, humidity, and electromagnetic interference. Make sure that the installation environment meets the requirements of the module to ensure its normal operation.
• Budget: The price of the IC694ALG392 is relatively high, so you need to consider your budget when selecting. However, considering its high performance and reliability, it can bring long – term benefits to your project.

Precautions

• Safety regulations: When installing and using the IC694ALG392, follow the relevant safety regulations and standards to ensure the safety of personnel and equipment. Make sure that the power supply is turned off before installation and maintenance, and use appropriate tools and protective equipment.
• Maintenance suggestions: Regularly check the operating status of the module, including the power supply, communication, and output signals. Clean the module regularly to prevent dust and dirt from affecting its performance. If a fault is found, contact the professional technical support in time for repair.
