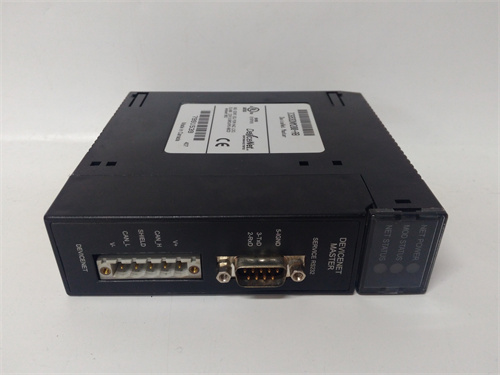

IC693DNM200

¥2,152.00

Parameter Specifications

The technical specifications of the IC693DNM200 are as follows:

  • Supply Voltage: 5V DC (supplied by the PLC rack).
  • Communication Protocol: DeviceNet (Conforms to DeviceNet Specification 2.0).
  • Baud Rates: 125 Kbps, 250 Kbps, 500 Kbps (configurable).
  • Number of Nodes Supported: Up to 64.
  • Current Consumption: 0.5A (typical).
  • Operating Temperature: 0°C to 60°C (32°F to 140°F).
  • Storage Temperature: -40°C to 85°C (-40°F to 185°F).
  • Relative Humidity: 5% to 95% (non-condensing).
  • Certifications: CE, UL, and CSA compliance.
Category:

Description

Parameter Specifications

The technical specifications of the IC693DNM200 are as follows:

  • Supply Voltage: 5V DC (supplied by the PLC rack).
  • Communication Protocol: DeviceNet (Conforms to DeviceNet Specification 2.0).
  • Baud Rates: 125 Kbps, 250 Kbps, 500 Kbps (configurable).
  • Number of Nodes Supported: Up to 64.
  • Current Consumption: 0.5A (typical).
  • Operating Temperature: 0°C to 60°C (32°F to 140°F).
  • Storage Temperature: -40°C to 85°C (-40°F to 185°F).
  • Relative Humidity: 5% to 95% (non-condensing).
  • Certifications: CE, UL, and CSA compliance.

Conclusion

The IC693DNM200 is a versatile and reliable communication module that plays a vital role in industrial automation systems. Its compact design, robust features, and high stability make it an ideal choice for integrating GE Fanuc Series 90-30 PLCs into DeviceNet networks. Whether used in manufacturing, material handling, or process control, this module ensures efficient communication and seamless operation, contributing to increased productivity and reduced downtime in industrial environments.



Features

The IC693DNM200 offers several key features that enhance its functionality and usability:

  1. DeviceNet Compatibility: Acts as a master scanner on a DeviceNet network, supporting up to 64 nodes.
  2. High-Speed Communication: Supports baud rates of 125 Kbps, 250 Kbps, and 500 Kbps, ensuring efficient data transfer.
  3. Plug-and-Play Installation: Easily integrates into the Series 90-30 PLC rack without requiring complex configuration.
  4. LED Indicators: Provides visual status updates for power, network activity, and fault conditions.
  5. Dual-Port Design: Allows for daisy-chaining of devices, reducing wiring complexity and costs.
  6. Robust Construction: Built to withstand harsh industrial environments, including resistance to vibration, dust, and temperature fluctuations.

Stability and Reliability

The IC693DNM200 is known for its high stability and reliability, which are critical in industrial automation. Key factors contributing to its performance include:

  • Industrial-Grade Components: Designed to operate in demanding conditions with a temperature range of 0°C to 60°C (32°F to 140°F).
  • Error Detection and Diagnostics: Built-in diagnostics help identify and resolve network issues quickly, minimizing downtime.
  • Long Lifespan: Engineered for durability, ensuring consistent performance over extended periods.
  • Compliance with Standards: Meets industry standards for electromagnetic compatibility (EMC) and electrical safety, ensuring reliable operation in diverse environments.

IC693DNM200: Overview and Detailed Analysis

The IC693DNM200 is a specialized communication module designed for use in industrial automation systems, particularly within the GE Fanuc Series 90-30 PLC (Programmable Logic Controller) family. Below is a detailed analysis of its real-world applications, weight and dimensions, features, stability and reliability, and technical specifications.

Real-World Applications

The IC693DNM200 is primarily used in industrial settings where reliable communication between PLCs and other devices is critical. It serves as a DeviceNet Scanner Module, enabling the GE Fanuc Series 90-30 PLC to act as a master on a DeviceNet network. This allows seamless integration with various industrial devices such as sensors, actuators, motor controllers, and I/O modules. Common applications include:

  • Manufacturing Automation: Coordinating machinery on production lines.
  • Material Handling Systems: Controlling conveyors, robotic arms, and sorting systems.
  • Process Control: Monitoring and managing industrial processes in industries like oil and gas, chemical, and food processing.
  • Packaging Systems: Ensuring precise control over packaging machinery.

Weight and Dimensions

The IC693DNM200 is designed to be compact and lightweight, making it easy to integrate into existing PLC racks without occupying significant space. Its approximate specifications are:

  • Weight: 0.5 lbs (227 grams).
  • Dimensions: 3.94 x 1.97 x 5.91 inches (100 x 50 x 150 mm).

These dimensions make it suitable for use in tight industrial control panels, where space optimization is crucial.
