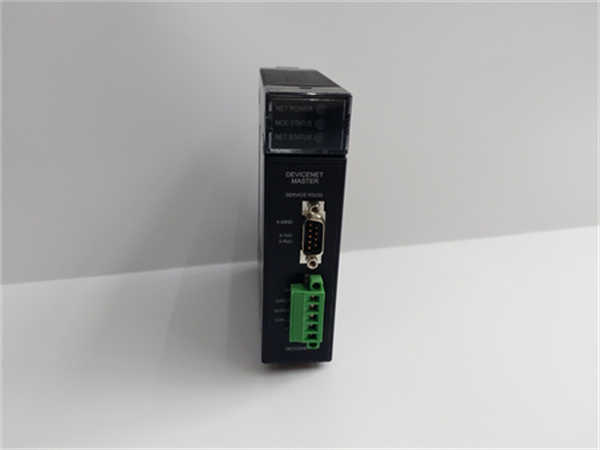

IC693DNM200

Description

trait
Electrical isolation: Supports electrical isolation between channels to improve system reliability and safety.
LED Status indicator: There are LED lights on the module to indicate the input status of each channel.
Devicenet communication: Supports the Devicenet communication protocol and can communicate with other devices on the Devicenet network.
Master function: It acts as a master in the Devicenet network and is responsible for controlling and monitoring the Slave device.
Quick configuration: With easy-to-configure functions, it is convenient for users to set network parameters and slave devices.

Parameters and specifications
Input channels: Has 32 digital input channels.
Input type: Each channel supports discrete signal input and can receive digital input signals such as switches and sensors.
Power requirements: The module is powered by an external power supply with a voltage range of 12-24V DC.
Input level range: Support input level range 0-24V DC.
Communication speed (specific models such as IC693DNM200-BD) : Supports standard DeviceNet transfer rates such as 125K, 250K, and 500K baud.
Rated voltage: 12 to 24 volts DC (positive logic).
