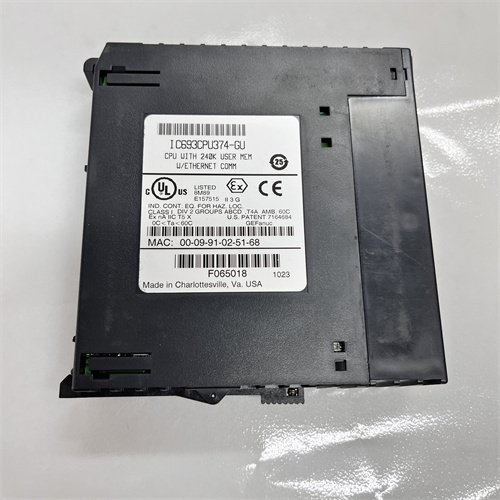

IC693CPU374

Description

argument
Manufacturer: GE Fanuc (now GE Automation & Controls)
Product number: IC693CPU374
CPU Type: single-slot CPU module with embedded Ethernet interface
Processor speed: 133MHz (there are also claims of 33MHz, but 133MHz is more common)
Processor type: Embedded 586
Typical scan rate: 0.15 ms per 1K logic
Storage type: RAM and Flash
User memory (total) : 240 KB
Protocol support: SRTP, Ethernet Global Data (EGD), Modbus/TCP client/server protocol
Number of Ethernet ports: two, 10/100 base-T/TX ports with automatic sensing
Number of IP addresses: one
Power supply: 5 volts DC voltage supply, rated power is 7.4 watts
specification
Operating temperature: 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit)
Storage temperature: -40 ℃ to +85 ℃
Institutional certification: UL508, C-UL (Level 1, Zone 2,A,B,C,D), CE mark
Size and weight
Weight: 1.81 kg (shipping weight is 3 kg)
series
Product line: GE Series 90-30 Series Programmable Logic Controller (PLC)
trait
High performance processing: Equipped with a high-speed processor, providing high-speed Boolean and non-Boolean processing functions
Modular design: Support modular, programmable control system, and other PLC, computer, HMI and other equipment for data exchange and communication
Communication interface: Built-in Ethernet controller supports communication speeds of up to 100 Mbps and comes with two Ethernet ports
Programming flexibility: Supports different programming languages, can handle floating-point data, and can be configured using VersaPro or CIMPLICITY machine edition logic software
High reliability and stability: can work in harsh industrial environments
effect
Industrial control: As a programmable logic controller (PLC), it is used to control and monitor various equipment and processes, such as manufacturing, automated production lines, process control, water treatment, electric power generation and other fields
Data processing and computing: processing and analysis of sensor data and system status
Alarm and Event handling: The ability to trigger alarms, event logging, or notify operators when an exception occurs or certain conditions are met
Remote monitoring: Support remote monitoring of PLC through a web browser
