Description
Parameters and specifications:
Manufacturer: GE Fanuc (now part of ABB).
Product number: IC693CPU374.

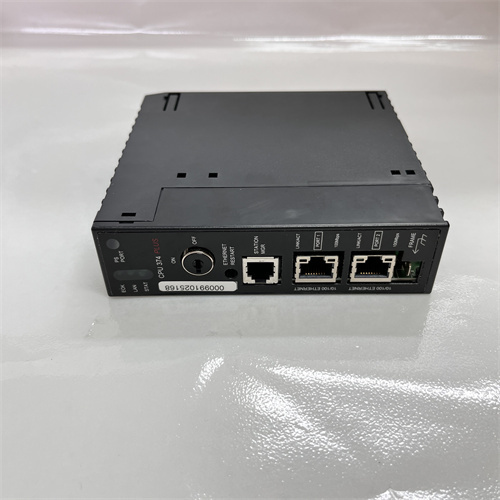

CPU Type: single-slot CPU module with embedded Ethernet interface.
Processor speed: 133 MHz.
Processor type: Embedded 586.
Typical scan rate: 0.15 ms per 1K Boolean contact logic.
Storage type: RAM and Flash.
User memory (total) : 240KB
Number of Ethernet communication ports: two, 10/100 base-T/TX ports with automatic sensing.
Number of IP addresses: one.
Protocol support: SNP and SNPX on the RS-485 port of the power supply, as well as SRTP and Ethernet Global Data (EGD).
Operating temperature: 0 to 60 degrees Celsius.
Institutional certification: UL508, C-UL (Level 1, Zone 2, A, B, C, D), CE mark.
Size and weight:
Weight: 1.81 kg (according to some information).
Series:
Product line: GE Series 90-30 series Programmable Logic controller (PLC).
Features:
High-speed processing: The 133 MHz processor speed provides high-speed Boolean and non-Boolean processing capabilities.
Communication capabilities: Two built-in Ethernet ports support 10/100 Mbps transmission speeds, as well as RS485 communication interfaces.
Scalability: Can be used with other GE Fanuc input/output modules.
Programming flexibility: Support for a variety of programming software, such as VersaPro 2.03 or later, CIMPLICITY Machine Edition Logic Developer 2.60 or later, and control software version 2.50 or later.
Functions:
Industrial control: Used in industrial automation and control systems to perform user-written control logic and operations.
Data exchange: Communication and data exchange with programming workstations, human machine interface (HMI), supervisory control and Data acquisition (SCADA) systems, and other processors via Ethernet ports.
Widely used: commonly used in manufacturing, automated production lines, process control, water treatment, power generation and other fields.
