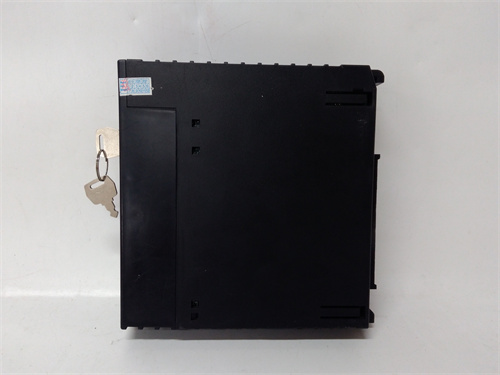

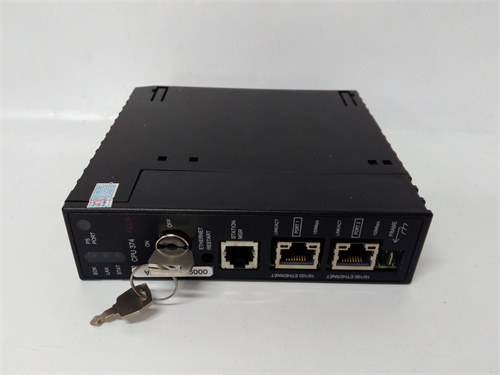

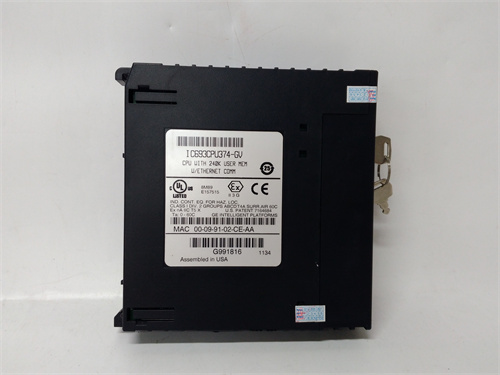

IC693CPU374

Description

5. Stability and Reliability

• Robust Design: The IC693CPU374 is built with a durable housing that provides protection against dust, moisture, and mechanical vibrations. This makes it suitable for use in harsh industrial environments, such as factories with high levels of noise, dust, and temperature variations.
• Redundant Power Supply: Some models of the IC693CPU374 may have a redundant power supply option. In case of a power failure, the redundant power source can ensure the continuous operation of the CPU, preventing data loss and system downtime.
• Error – Detection and Self – Recovery: It has built – in error – detection mechanisms that can detect and diagnose faults in real – time. It can also perform self – recovery operations, such as restarting a malfunctioning module or switching to a backup control strategy, to maintain system stability.

6. Parameter Specifications

• Power Supply: It operates on a 24V DC power supply, with an allowable voltage range of 21.6V to 26.4V. This wide voltage range ensures stable operation even in the presence of small power fluctuations.
• Memory:
  • Program Memory: It has 1 MB of program memory, which can store a large number of control programs and logic instructions.
  • Data Memory: There is 512 KB of data memory for storing process data, sensor readings, and other operational information.
• Input/Output Capacity: It can support up to 2048 digital input/output points and 512 analog input/output points. This high input/output capacity allows it to handle complex control tasks in large – scale industrial systems.
• Communication Speed: For Ethernet communication, it supports data transfer rates of up to 100 Mbps, enabling fast and efficient data exchange with other devices in the network.

1. Real – world Case

2. Applications

• Automotive Manufacturing: As demonstrated in the above case, it is used in robotic welding, painting, and assembly processes. It helps to control the movement and operation of robots, ensuring high – quality production and efficient use of resources.
• Food and Beverage Industry: In food processing plants, the IC693CPU374 can be used to control the operation of filling machines, packaging equipment, and conveyor systems. It ensures accurate dosing, proper packaging, and smooth material flow, maintaining product quality and safety.
• Water and Wastewater Treatment: For water treatment plants, it can control the operation of pumps, valves, and chemical dosing systems. It monitors water quality parameters such as pH, turbidity, and chlorine levels, and adjusts the treatment processes accordingly to ensure the supply of clean water.

3. Weight and Dimensions

• Weight: The IC693CPU374 weighs approximately 1.1 kg. This relatively light weight makes it easy to handle during installation and maintenance, especially when working in confined spaces within control cabinets.
• Dimensions: It has dimensions of about 170 mm in length, 120 mm in width, and 40 mm in height. These compact dimensions allow it to be easily installed in standard DIN – rail mounting systems, which are commonly used in industrial control applications.

4. Features

• High – Performance Processing: It is equipped with a powerful processor that can handle complex logic operations and process large amounts of input/output data in real – time. This enables fast decision – making and precise control of industrial processes.
• Multiple Communication Interfaces: The device supports multiple communication protocols, including Ethernet, Modbus, and DeviceNet. This allows it to communicate with other devices in the control system, such as sensors, actuators, and human – machine interfaces (HMIs). It facilitates seamless integration into existing industrial networks.
• Flexible Programming: It offers flexible programming options, supporting ladder logic, function block diagrams, and structured text programming languages. This allows programmers to implement complex control strategies according to specific application requirements.
