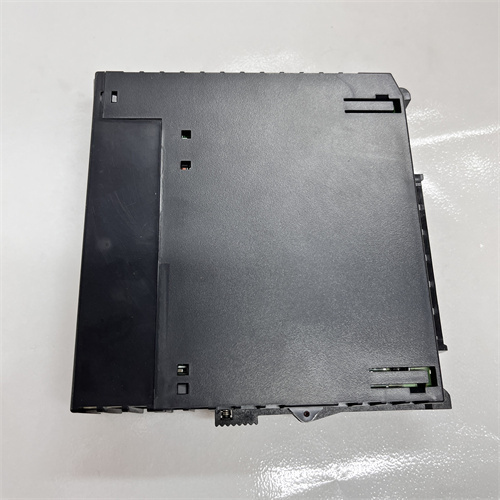

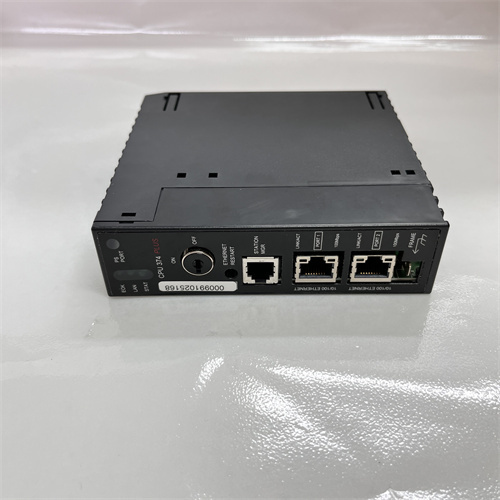

IC693CPU374

Description

trait
Embedded Ethernet controller: Supports communication speeds up to 100 Mbps and comes with a built-in switch
Multi-protocol support: Support SRTP, Ethernet global data, and Modbus/TCP client/server protocols
High performance: Fast processing speed, suitable for dealing with complex control logic
Scalability: Comes with one CPU backboard and seven extended or remote backboards that support different programming languages and floating-point data processing
High reliability: Wide operating temperature range (0 to 60 degrees Celsius), can be stored between -40 and 85 degrees Celsius when not in use

argument
Processor speed: 133 MHz
User memory: 240 KB
I/O points: 2048 fixed discrete input and output points, I/O simulation point 2048 input /512 output
Real clock: Supported
Communication speed: Ethernet communication speeds up to 100 Mbps are supported
Typical scan rate: 0.15 ms per 1K logic
Rated power: 7.4 watts (other information indicates that the power consumption is 3W, which may refer to the power consumption in different configurations or operating states)
Supply voltage: 5 V DC
specification
Module type: CPU module
Series: 90-30 series
Memory type: RAM and Flash
Total number of racks: 8
