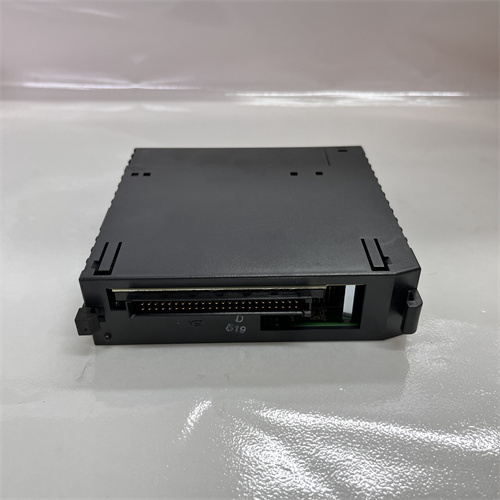

IC693CPU374

Description

series
IC693CPU374 belongs to the 90-30 series PLC module of GE Fanuc
trait
Embedded Ethernet Controller: Supports communication speeds of up to 100 Mbps with built-in switches that support SRTP and Ethernet global data as well as Modbus/TCP client/server protocols
Multi-communication interface: With two Ethernet communication ports, support 10/100 Mbps transmission speed, with automatic sensing function. At the same time, it can also communicate through the RS485 communication interface
High processing power: The processor is fast, with a typical scan rate of 0.15 milliseconds per 1K of logic
Storage capacity: Equipped with RAM and flash memory for storing user programs and data
System support: Battery powered, powering the system clock and RAM. Supports different programming languages and can handle floating-point data
Modular design: Equipped with one CPU backboard and seven expansion or remote backboards for easy expansion and configuration
Industrial protection: With IP20 protection grade, in line with 2/ZONE 2 specifications

argument
Processor type: AMD SC250 or AMD SC520 (different terms, but both are embedded processors)
Processor speed: 133 MHz
User memory: 240 KB
I/O points: 2048 fixed discrete input and output points
Discrete global storage capacity: 1280 bits
Register memory: can be configured from 128 to 32,640 words
System registers: 28 fixed system registers
Timer/counter: About 2000
Rated power: 7.4W (some say 3W, may be different versions or configurations)
Supply voltage: 5V DC or 24V DC (varies, may be different versions or configurations)
Communication speed: Ethernet communication up to 100 Mbps is supported
Working temperature: 0 to 60 degrees Celsius
Storage temperature: -40 to 85 degrees Celsius
specification
Size: 4252mm (one version) or 1216*5cm (another version, which may include the size of the packaging or mounting bracket)
Weight: 0.5kg (one way) or 2kg (the other way)
