IC693CPU372

Description

Parameters and specifications:

Model: IC693CPU372
Communication protocol: Supports TCP/IP and Modbus TCP protocols, and can communicate with various devices
Transfer rate: 10/100 Mbps

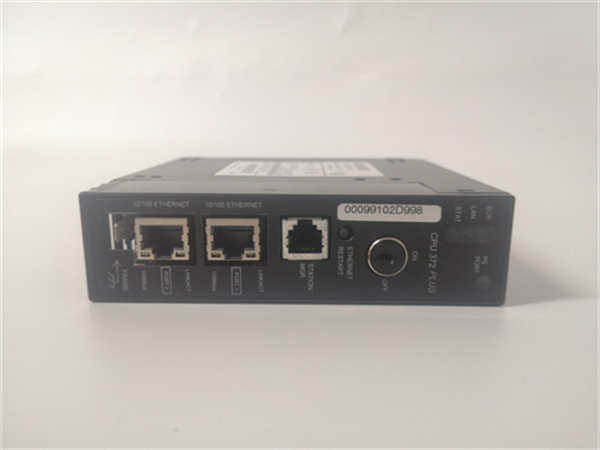

Ethernet port: Built-in two RJ45 ports
Supported network topologies: star, bus, ring
Operating temperature range: -40°C to 85°C
Storage temperature range: -55°C to 125°C
Humidity: 5% to 95% (non-condensing)
Protection level: IP67
Power supply voltage: 24 VDC
Power consumption: maximum 4 W1 or 3W

Isolation voltage: 250 V RMS
Common mode rejection: 50 dB
Processor: AMD SC520, clock speed 133MHz
User program memory: maximum 240Kbytes
I/O capability: Support 2048 discrete inputs, 2048 discrete outputs, 32,640 analog input words (Max.) and 32,640 analog output words (Max.)

Size and weight:

Dimensions: Different sources give different dimensions, such as 133 mm x 42 mm x 3 mm, 12165 (possibly referring to centimeters), 120mm x 120mm
Weight: 0.01 kg, 0.5kg, 2.40 pounds (about 1.09kg)

Functions:

IC693CPU372 is a TCP/IP Ethernet communication interface module, mainly used to achieve Ethernet communication, and support Modbus TCP server/client and industrial Ethernet and other system protocols. It can be used to periodically perform data exchange using Ethernet Global Data (EGD), SRTP, and SRTP clients. In addition, it is widely used in industrial automation, control system integration, intelligent equipment communication and other fields
