IC693CPU372

Description

–‌Parameters‌:
–‌Processor‌: AMD SC520, with a clock speed of 133MHz12.
–‌Memory‌: Maximum user program memory of 240Kbytes12.
–‌I/O Capacity‌: Supports up to 2048 discrete inputs, 2048 discrete outputs, 32,640 analog input words (max), and 32,640 analog output words (max)13.

–‌Specifications‌:

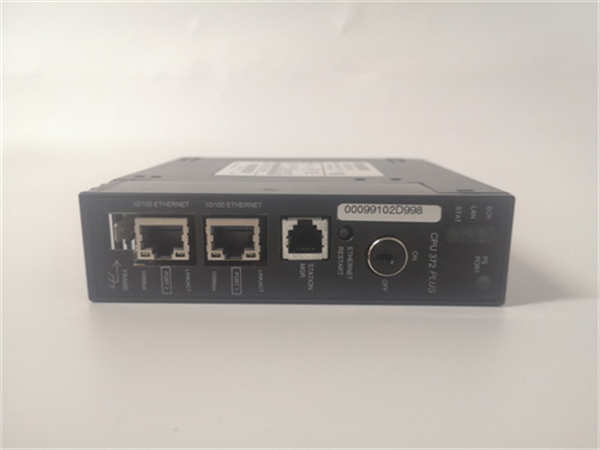

–‌Communication Interfaces‌: Built-in 2 Ethernet interfaces supporting 10/100 Mbps, compatible with industrial Ethernet and Modbus TCP/IP13.
–‌Programming Software‌: Uses Proficy Machine Edition PLC Logic Developer for configuration1.
–‌Power Requirements‌: Operates at 5V DC with a power consumption of 7.4W1.

–‌Dimensions & Weight‌:
–‌Dimensions‌: 132mm x 105mm x 52mm5.
–‌Weight‌: Approximately 2KG

–‌Series‌:

• Part of the GE Fanuc 90-30 series of modular components12.

–‌Characteristics‌:
–‌Modularity‌: Designed as a single-slot modular CPU, allowing flexible integration into various automation systems12.
–‌High Performance‌: Equipped with a powerful AMD SC520 processor, capable of handling complex control tasks12.
–‌Expandability‌: Supports additional 90-30 series modules for enhanced functionality13.

–‌Role‌:
–‌Central Processing Unit‌: Acts as the brain of industrial automation systems, executing control logic and managing I/O12.
–‌Communication Hub‌: Enables data exchange with other devices on the network, supporting protocols such as Modbus TCP/IP and industrial Ethernet13.
–‌System Configuration‌: Facilitates the programming and configuration of PLC systems, using dedicated software tools
