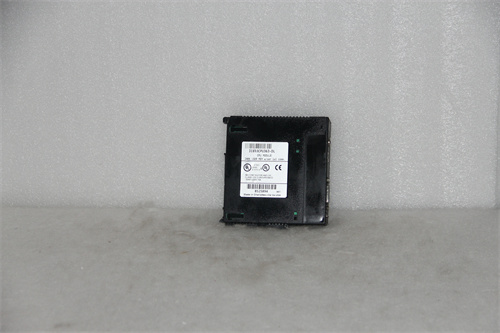

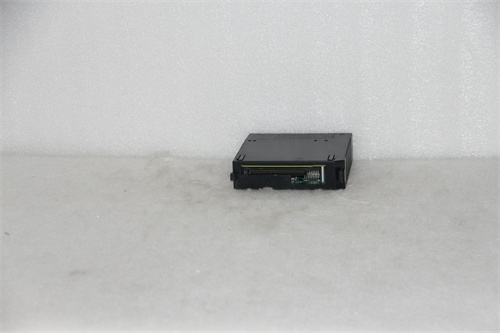

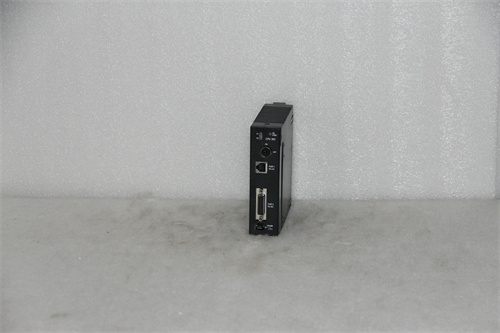

IC693CPU363

Description

Parameter Specifications

Power Supply
It requires a 5V DC power supply with a tolerance of ±5%. Additionally, it may have an auxiliary 24V DC power input for certain functions. The power consumption is relatively low, typically around 10W, ensuring energy – efficient operation.
Processor
Features a high – performance 32 – bit processor. The clock speed is optimized for industrial control applications, enabling fast execution of ladder logic and other control algorithms. It can handle complex tasks with a high degree of precision.
Memory
Has 256 KB of non – volatile RAM for storing programs and data. This memory is battery – backed to ensure data integrity in case of power outages. There is also additional memory for data buffering and temporary storage during operation.

Communication Interfaces

Supports multiple communication protocols. It has a built – in serial port (RS – 232) for local programming and configuration. For network communication, it can be equipped with optional communication modules for Ethernet, Modbus, or other industrial protocols, allowing seamless integration into different industrial networks.
Uses
Automation Control
Serves as the central processing unit in a programmable logic controller (PLC) system. It executes control logic based on input signals from sensors and sends output signals to actuators to control industrial processes such as conveyor systems, assembly lines, and machine tools.
Logic Programming
Allows users to program ladder logic, function block diagrams, or structured text to implement specific control strategies. These programs can be easily modified and updated to adapt to changing production requirements.
Data Logging and Monitoring
Can collect and log data from connected sensors and devices. This data can be used for process analysis, quality control, and predictive maintenance. It also enables real – time monitoring of process variables and system status.

Weight and Dimensions

Weight
Approximately 0.5 kg, which is relatively light and easy to handle during installation and maintenance.
Dimensions
It has a compact form factor, with a length of about 150 mm, a width of 100 mm, and a height of 70 mm. This compact size allows it to be installed in standard control cabinets or other limited – space industrial environments.

Characteristics

Reliability
Built with high – quality components, it is designed to operate in harsh industrial environments. It is resistant to temperature variations, vibrations, and electromagnetic interference, ensuring long – term and stable operation.
Ease of Use
Comes with user – friendly programming software that simplifies the programming and configuration process. Even users with limited programming experience can quickly learn and use the system.
Scalability
Can be easily expanded by adding input/output (I/O) modules, communication modules, or other peripheral devices. This allows for the customization of the control system according to specific application requirements.

Application Areas

Industrial Manufacturing
Widely used in manufacturing plants for controlling production processes, ensuring product quality and production efficiency.
Packaging Industry
Applied in packaging machines to control the movement of materials, filling, sealing, and labeling processes.
Material Handling
Used in warehouses and distribution centers to control conveyor systems, automated guided vehicles (AGVs), and other material – handling equipment.
