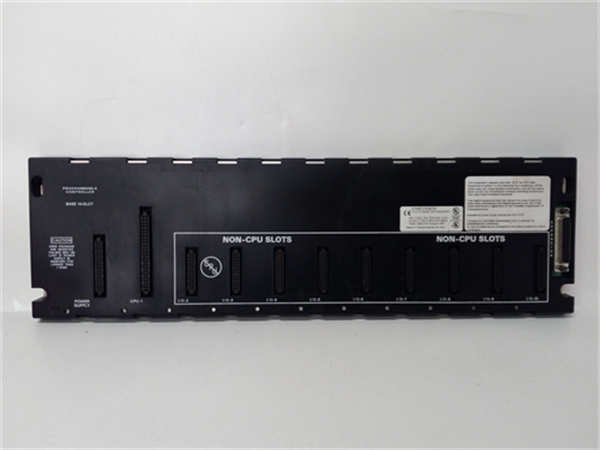

IC693CHS391

Description

‌Parameters & Specifications‌:
–‌Model‌: IC693CHS39112.
–‌Slots‌: Features ten (10) slots, with one dedicated to the CPU and nine for I/O modules2.
–‌Voltage‌: Rated voltage of 5 VDC2.
–‌Current‌: Rated current of 420 mA2.
‌Dimensions & Weight‌:
–‌Dimensions‌: Dimensions may vary slightly, but it is designed for modular installation within a PLC rack2.
–‌Weight‌: One source lists a weight of 10kg6, while another specifies 2.1kg7. Actual weight may depend on specific configuration and accessories.
‌Series‌:
–‌Series‌: Part of GE Fanuc’s 90-30 series PLCs

‌Features‌:
–‌Modularity‌: Enables the installation of modular CPU, I/O modules, and power modules12.
–‌Expansion‌: Supports multiple expansion boards for system expansion2.
–‌DIP Switch‌: Equipped with a DIP switch for configuration and setup2.
–‌High Reliability‌: Designed for industrial environments, with high resistance to vibration, durability, and adaptability to harsh conditions45.
‌Functions‌:
–‌System Integration‌: Serves as the backbone for integrating CPU, I/O modules, and power modules within the PLC system2.
–‌Signal Transmission‌: Facilitates the transmission of digital signals between the PLC and external devices4.
–‌Logical Control‌: Enables logical control and processing of input/output signals for automation tasks4.
‌Conclusion‌:
The IC693CHS391 modular CPU baseplate from GE Fanuc (Emerson Automation Solutions) is a critical component in the 90-30 series PLCs for industrial automation. Its modular design, expansion capabilities, and high reliability make it an ideal choice for applications requiring precise control and reliable operation in demanding industrial environments. As part of the 90-30 series, the IC693CHS391 seamlessly integrates with other PLC components, providing a robust and scalable automation solution.
