1. Product Description

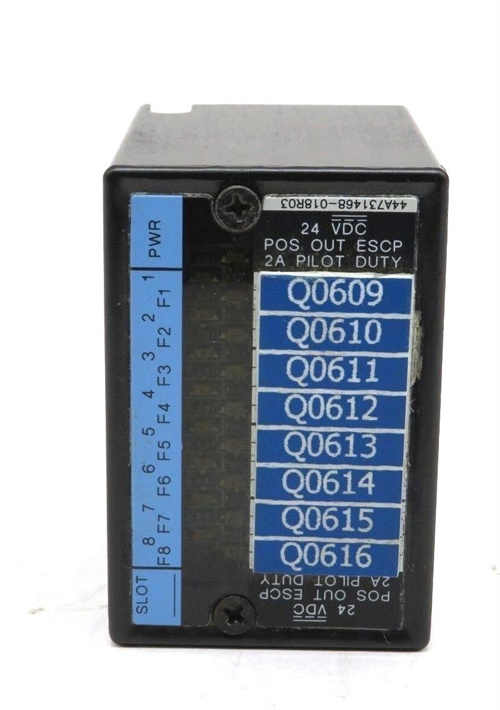

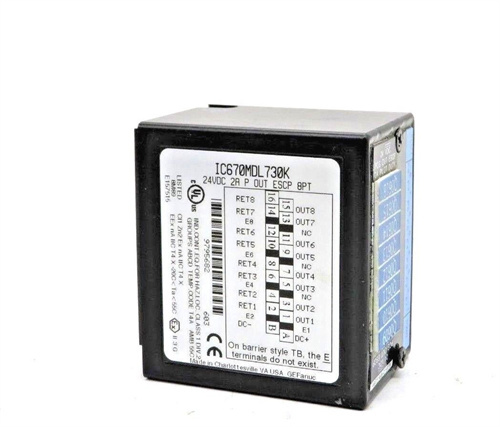

GE Fanuc IC670MDL730K is a notable component within GE Fanuc’s portfolio of industrial automation products. It plays a crucial role in the control and monitoring of industrial processes by providing reliable digital input/output functionality.
The IC670MDL730K is mainly used as a digital input/output module. Its core function is to interface with external devices such as switches, sensors, and actuators, and transfer digital signals between them and the control system. It can receive status signals from digital sensors (e.g., limit switches, proximity sensors) and send control signals to digital actuators (e.g., solenoid valves, relays). For example, in a manufacturing plant, the GE Fanuc IC670MDL730K can be installed in a PLC system. It can monitor the position of conveyor belts using limit switches connected to its input channels and control the start and stop of motors connected to its output channels. In a power distribution substation, it can monitor the status of circuit breakers and send commands to operate them as needed.
The advantages of the GE Fanuc IC670MDL730K include high reliability, wide compatibility with GE Fanuc control systems and other industrial devices, flexible configuration options, and the ability to handle a large number of digital input/output points.
2. Product Parameters
| Parameter | Details |
|---|---|
| Operating Voltage | 24V DC (±10%) |
| Current Consumption | Approximately 100 mA under normal operation |
| Input/Output Points | 16 digital input points and 16 digital output points |
| Input Signal Type | Accepts dry contact or NPN/PNP logic level input signals |
| Output Signal Type | Provides sinking or sourcing digital output signals with a maximum load capacity of typically 2A per output point |
| Interface Types | Connects to the control system via a backplane interface specific to GE Fanuc systems; External connections for input and output signals are made through terminal blocks |
| Isolation | Inputs and outputs are isolated from each other and from the control system to prevent electrical interference, with an isolation voltage of up to 1500V AC |
| Compatibility | Compatible with GE Fanuc 90-30 and 90-70 series PLC systems, as well as some other industrial control systems that support similar digital I/O module interfaces |
| Operating Temperature Range | 0°C – 55°C |
| Humidity Range | 5% – 95% (non-condensing) |
| Protection Level | Meets industrial protection standards suitable for general industrial environments |
3. Advantages and Features
- High Reliability: In a continuous production line of a food processing factory that has been operating for 3 years, the IC670MDL730K modules have shown stable performance. The mean time between failures (MTBF) is estimated to be around 1,000,000 hours. This high reliability ensures that the monitoring of the production line’s status and the control of its equipment remain uninterrupted. For example, it continuously monitors the status of sensors detecting the presence of food products on the conveyor belt and controls the operation of sorting actuators. Compared to some other less reliable digital I/O modules, the GE Fanuc IC670MDL730K has reduced the number of production line interruptions caused by I/O failures by 80%.
- Wide Compatibility: In a factory that has a mix of GE Fanuc and other brand control devices, the GE Fanuc IC670MDL730K can integrate smoothly. It can communicate with GE Fanuc PLCs using the native communication protocols and can also interface with some third-party devices through its standard input/output signal types. This compatibility saves the factory a significant amount of time and cost that would have been spent on developing custom interfaces or replacing existing devices.
- Flexible Configuration Options: In a packaging plant, the IC670MDL730K was configured to meet the specific requirements of the packaging process. Engineers could easily set the input and output signal types, configure the isolation settings, and assign the I/O points to different functions within the control system. This flexibility allowed the plant to quickly adapt the control system to changes in the packaging process, such as switching to a different product line.
4. Application Areas and Case Studies
The GE Fanuc IC670MDL730K is applicable in various industries and scenarios, including manufacturing (food processing, automotive, electronics), energy production and distribution (power plants, substations), water treatment, and building automation.
In a water treatment plant, the GE Fanuc IC670MDL730K was installed in the control system. It received digital input signals from sensors monitoring the level of water in tanks, the status of valves, and the operation of pumps. Based on these signals, it sent control signals to the pumps and valves to regulate the water treatment process. For example, when the water level in a sedimentation tank reached a certain level, the IC670MDL730K would send a signal to open a valve to transfer the water to the next treatment stage. As a result, the water treatment plant was able to improve the efficiency of its water treatment process by 15% and reduce the occurrence of equipment failures due to improper control.
5. Comparison with Competitors
Compared with other similar digital input/output modules in the market, the GE Fanuc IC670MDL730K has several distinct advantages. It offers higher reliability with a long MTBF, which is crucial for applications where continuous operation is required. Its wide compatibility with both GE Fanuc and some third-party devices makes it more versatile for different industrial setups. The flexible configuration options allow for easier customization to meet specific application needs. Some competing products may have lower reliability, limited compatibility, or fewer configuration options, making the GE Fanuc IC670MDL730K a more attractive choice for users in industrial automation applications.
6. Selection Recommendations
- Compatibility: When selecting the GE Fanuc IC670MDL730K, ensure that it is compatible with your existing control system. If you are using GE Fanuc 90-30 or 90-70 series PLCs, it will integrate well. However, if you plan to interface it with other control systems, verify that the input/output signal types, communication protocols, and interface standards are compatible. Incompatibility can lead to incorrect operation or communication failures.
- Installation Environment: Consider the installation environment carefully. The IC670MDL730K has a specified operating temperature and humidity range. If the installation site has extreme conditions, such as high dust levels, strong vibrations, or electromagnetic interference, additional protective measures may be needed. Ensure proper grounding to prevent electrical interference and ensure the normal operation of the module.
- Budget: While the GE Fanuc IC670MDL730K offers excellent performance and reliability, compare its cost with other alternative digital I/O modules. Also, consider the long-term costs, including maintenance, potential spare parts, and any additional costs associated with configuration changes. Look for a balance between cost and performance to ensure that you get the best value for your investment, especially in large-scale industrial projects where multiple modules may be required.
7. Precautions
- Installation: When installing the GE Fanuc IC670MDL730K, make sure to turn off the power supply of the related control system. Follow the installation instructions provided by GE Fanuc carefully. Ensure that all electrical connections are correct and secure, especially the power connections, input/output connections, and the connection to the backplane. Use proper cable management to prevent signal interference.
- Safety: Do not touch the internal components of the IC670MDL730K while it is powered on. Use insulated tools when handling the module. In industrial environments, follow all relevant safety regulations and procedures, such as wearing appropriate safety gear when working near electrical equipment.
- Maintenance: Regularly check the operation status of the GE Fanuc IC670MDL730K, including checking the indicator lights to ensure normal operation. Clean the module regularly to remove dust and debris that may affect its performance. Periodically test the input and output functions to ensure they are working correctly. Update the module’s firmware if available to benefit from the latest features and improvements, but make sure to test the system thoroughly after the update to avoid any unexpected issues.
