Description
Specifications and Parameters:
Input Channels: 8 channels, supporting both voltage and current inputs.
Input Voltage Range: -10V to +10V.
Input Current Range: -20mA to +20mA.
Output Voltage Range: -10V to +10V, configurable in two isolated groups of 4 channels each.
Resolution: 14 bits for output voltage, providing high accuracy.
Update Rate: 10ms (note: this may vary depending on the specific model or application).
Safety Level: SIL 2, ensuring reliable operation in safety-critical applications.
Operating Temperature Range: -40°C to +70°C, suitable for a wide range of environments.
Supported Bus Types: Profibus-DP, Modbus RTU, facilitating integration into various industrial networks.
Function:

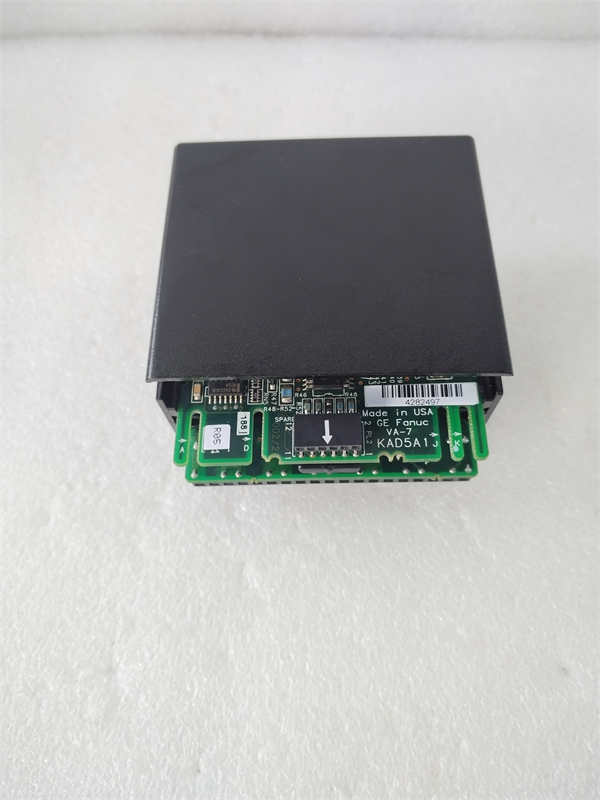

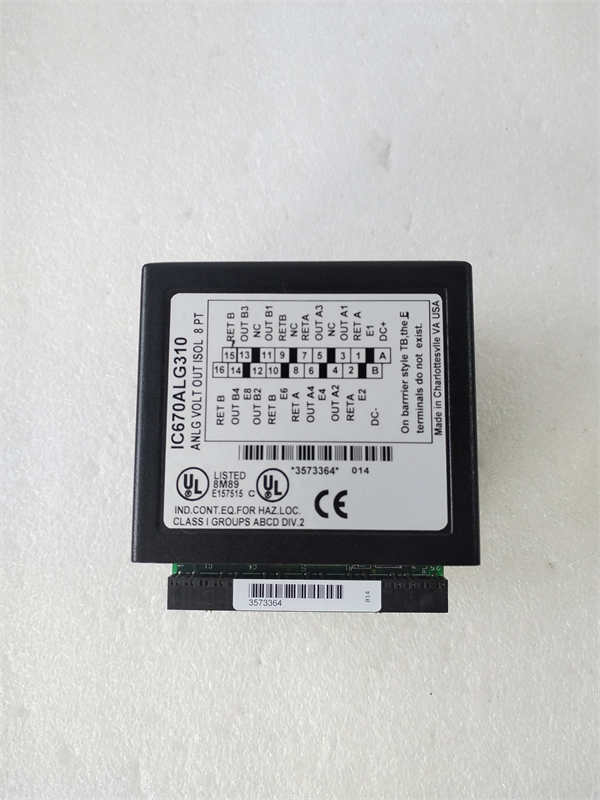

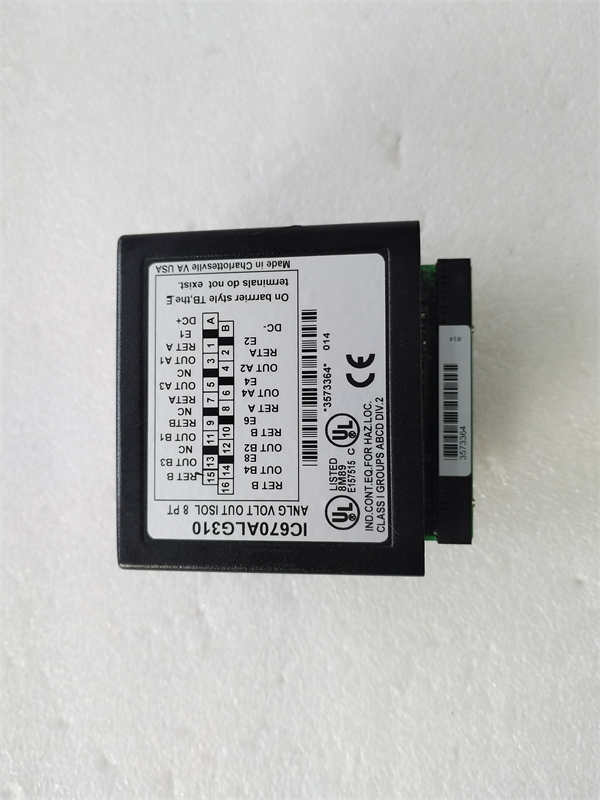

IC670ALG310 serves as an analog output module, converting digital input signals into analog voltage outputs.
It is designed for industrial automation applications, controlling valves, actuators, and other equipment that require precise analog control signals.
The module features enhanced diagnostic capabilities, including over-range and under-range detection, ensuring reliable operation and easy troubleshooting.
Weight and Dimensions:
Weight: Approximately 0.2kg for the standard model (note: weight may vary depending on manufacturer and customization options).
Dimensions: 71mm x 120mm x 36mm for the standard module size (dimensions for specific models, such as IC670ALG310-JA, may differ).
Additional Information:
The module has an open architecture design, allowing for flexibility and customization to meet specific application requirements.
It can be easily configured and calibrated on-site, minimizing downtime and simplifying maintenance procedures.
LED indicators provide visual feedback on the module’s status, facilitating monitoring and troubleshooting.
