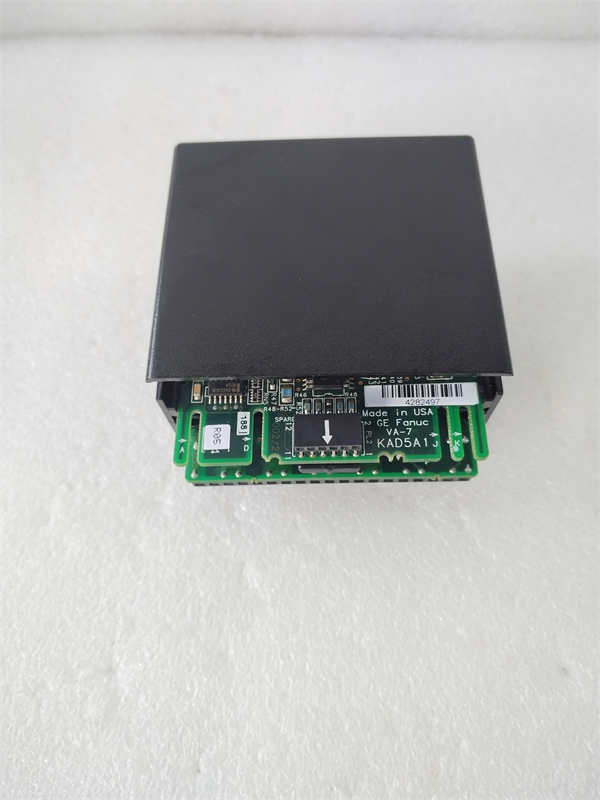

IC670ALG310

Description

argument
Output voltage range: +/-10 V or 0 to 10 V
Resolution: 14 bits
Input voltage range: The input voltage range varies depending on the source. One says 18 to 30 VDC, another says 12 to 48VDC, and still another says DC 9 to 36V (probably referring to a wide power input range).
Backplane current: 170 mA per channel
specification
Number of channels: 8 single-ended analog voltage outputs
Anti-noise isolation channel: supported
Field configuration: Flexible Settings
Data types: Use both word and bit data types
Calibration: Can be recalibrated on site or reset to factory calibration
Size and weight
Size: Sizes vary depending on the source. One said it was 149.2 x 44.45 x 115.6 mm (5.875 x 1.75 x 4.55 inches) and another said it was 170mm x 105mm x 32mm
Weight: About 120g
trait
Multi-channel output: has 8 independent analog output channels to support a variety of output ranges.
High accuracy and stability: 14-bit resolution ensures high accuracy and stability.
Anti-noise isolation: the channel has anti-noise isolation function to improve signal quality.
On-site configuration: Users can configure the module and set parameters according to specific requirements.
Data exchange: Data exchange with other devices or control systems via a bus interface unit (BIU).
Status indicator: Light emitting diode (LED) indicator shows module status.
