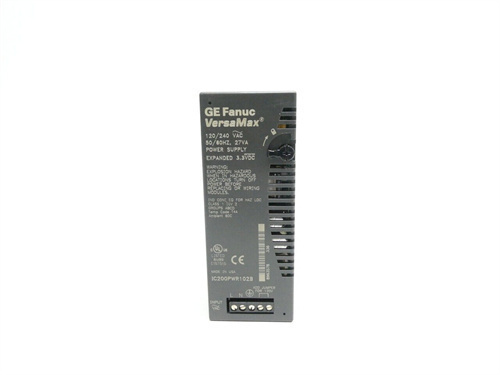

IC200PWR102

Description

‌Parameters and Specifications‌:

–‌Model Number‌: IC200PWR10212.
–‌Brand‌: GE Fanuc (now part of Emerson Automation)12.
–‌Series‌: VersaMax Product Series12.
–‌Input Voltage‌: 85-132 VAC / 176-264 VAC, configurable with jumpers12.
–‌Output Voltage‌: 5 VDC and 3.3 VDC12.
–‌Total Output Current‌: 1.5 A12.
–‌Input Power‌: 27 VA12.
–‌Hold-up Time‌: Approximately 20 ms1.
–‌Frequency Range‌: 47-63 Hz

‌Dimensions and Weight‌:

–‌Dimensions‌: 49 mm (1.93 in) x 133.4 mm (5.25 in) x 39 mm (1.54 in), excluding mounting base or DIN rail2.
–‌Weight‌: Approximately 1.25 kg (as per one source, may vary)3.
‌Series‌:

• Part of the VersaMax Product Series by Emerson Automation12.
  ‌Features‌:

–‌Configurable Input Voltage‌: Accepts 120 VAC or 240 VAC input, configurable via jumpers12.
–‌Dual Output Voltages‌: Provides 5 VDC and 3.3 VDC outputs12.
–‌High Power Density‌: High output current capacity within a compact form factor12.
–‌Protection‌: Built-in short-circuit and overload protection1.
–‌Versatility‌: Can be used as a primary power source or as a supplementary power module1.
‌Applications‌:

–‌PLC Power Supply‌: Primarily used to power VersaMax PLC backplanes and associated modules, such as network interface units (NIUs), input/output units (I/Os), and central processing units (CPUs)1.
–‌Industrial Automation‌: Ideal for a wide range of industrial automation applications requiring reliable and efficient power distribution
