Description
Parameters and specifications:

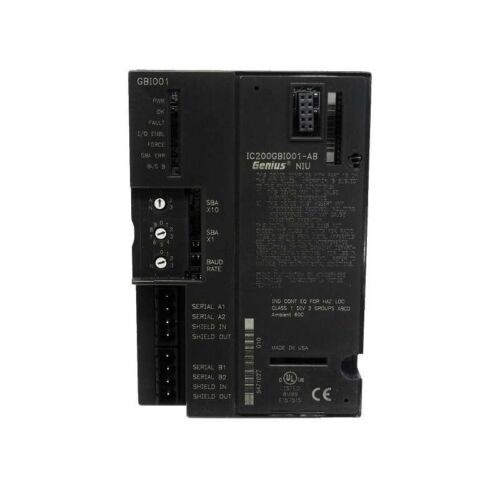

Type: VersaMax communication module, Genius Network Interface Unit (NIU).
Transmission speeds up to 153.6kbaud are supported, with standard configurations including 153.6kbaud, 76.8Kbaud and 38.4Kbaud.
I/O capacity:
Each rack supports a maximum of eight I/O modules.
Supports a maximum of 8 racks, that is, 64 I/O modules.
Discrete input and output memory are 1024 points.
Analog input and output memory are both 128 bytes.
Scanning capability: Each scan supports 128 bytes of input and output.
Power consumption: 250 mA@4VDC and 10 mA@3.3mA.
Size and weight:
Dimensions: Approximately 166mm x 112mm x 36mm.
Weight: about 375g.
Series:
The IC200GBI001 is part of GE’s VersaMax family of programmable logic controllers (PLCS).
Features:
Compatibility: Compatible with multiple controller systems, such as the 90-70 series, PACSystem RX7i, and PACSystem RX3i, as the Genius protocol is supported by previous and modern controller platforms.
Connectivity: Equipped with dual Genius connection terminals, the upper terminal serves as the primary Genius connection point and the lower terminal serves as a redundant port, designed for daisy-chain topology connections.
Scalability: Can accommodate a large number of I/O points, especially discrete input and output up to 1024 points, analog input and output memory of 128 bytes.
Functions:
The IC200GBI001 is a Genius network interface unit that allows VersaMax I/O modules to be installed in a distributed I/O architecture to manage and control I/O modules for data transmission and exchange.
