Description
Parameters and Specifications:
Dimensions (W x H x D): 126 x 128 x 69.1 mm
Power Requirements: 5V with 220mA and 3.3V with 570mA
Floating-point Capability: Yes
Boolean Execution Speed: 0.8 ms/K (typical)
Real-time Clock Accuracy: 100ppm (0.01%) or ±9 seconds/day
Communications: Supports RS-232, RS-485, and Ethernet
Configurable Memory: Up to 64K bytes
Ethernet Data Rate: 10Mbps (half- or full-duplex)
Ethernet Port: RJ-45, UTP
Number of Server Connections: 8
Number of Exchanges on EGD Configuration: 32
EGD Exchange Limitations: 100 data per exchange, 1400 bytes of data per exchange
EGD Time Synchronization: Yes, using NTP
Configuration Upload from PLC to Programmer: Yes
UDP-based Remote Station Manager: Yes
Local Station Manager (RS-232): Through CPU Port 1#
Dimensions (W x H x D): 126 x 128 x 69.1 mm
Weight: Not specifically mentioned in the referenced sources.

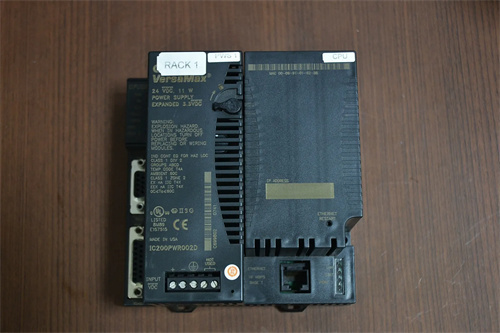

Series: VersaMax series PLC from GE Fanuc/Emerson Automation
Features:
Supports programming in multiple formats, including ladder logic, sequential function charts, and instruction set
Features high-speed counters (HSC), pulse width modulation output (PWM), and pulse train output
Supports floating-point arithmetic, PID functionality, subroutines, and real-time clock/date
Non-volatile flash memory for program, configuration, and data storage
Password-protected programming with four levels of access and OEM password settings
Diagnostic capabilities with built-in PLC and I/O fault tables
RS-232 and RS-485 communication ports with support for SNP, Modbus RTU, and series I/O protocols
Applications:
The GE IC200CPUE05-CG PLC CPU module is typically used in industrial automation and control systems. It can control local I/O modules directly or through fieldbus-controlled distributed I/O modules. It also supports communication with other PLCs. It finds applications in various industries where precise control and data acquisition are crucial.
