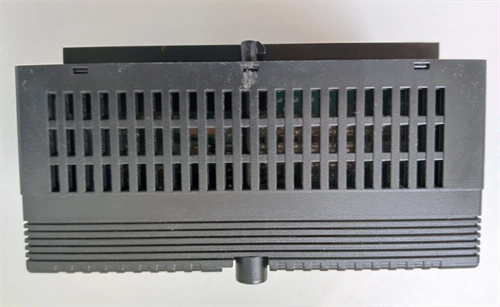

IC200ALG264

Description

series
The IC200ALG264 is part of the VersaMax I/O family.
trait
Versatile: Designed to be installed in remote locations and to transmit I/O data over industrial communication protocols.
High resolution: 15-bit converter resolution provides high precision analog input.
Error detection: The ability to detect error conditions, such as internal power loss and open circuit detection, and report these diagnostic states to the CPU.
Flexible configuration: Operating mode or range selection can be set using terminal jumpers to accommodate different input signal ranges.
LED indicator: Built-in module OK LED status indicator indicating that the module is successfully powered on and downloaded with valid configuration.
effect
Analog input: As an analog input module, IC200ALG264 is used to receive and process analog signals (such as 4-20 mA or 0-20 mA current signals) from external devices.
Data transmission: The received analog signal is converted into a digital signal and transmitted to the main processor or control system through industrial communication protocols to achieve real-time monitoring and processing of data.
Industrial automation: In industrial automation systems, IC200ALG264 is a key component that connects field equipment and control systems and plays an important role in achieving automated control and monitoring.

Parameters and specifications
Type: Analog input module
Number of channels: 15 single-ended input channels
Input range: 4-20 mA and 0-20 mA input signals can be accepted
Resolution: 15 bits
Update rate: 7.5 ms
Backplane current consumption: 100 mA
Accuracy: Typical full-scale accuracy is ±0.3%, but different accuracy values may be available at specific ambient temperatures (e.g. ±0.5% at 0 ° C, ±60% at 1-0 ° C)
Operating temperature: -40 to 70°C (mentioned in some parameters)
Size and weight
Dimensions: 4.300 inches x1.956 inches x2.630 inches, also mentioned 102 x 31 x 23 mm
Weight: 100g (according to certain parameters)
