Description

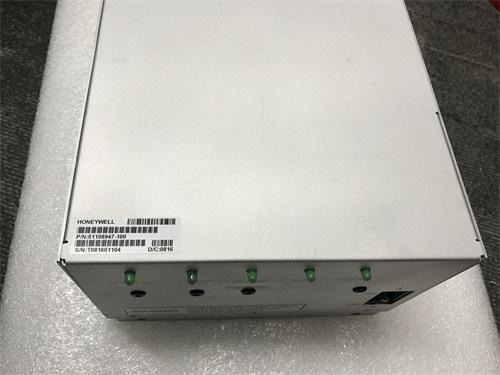

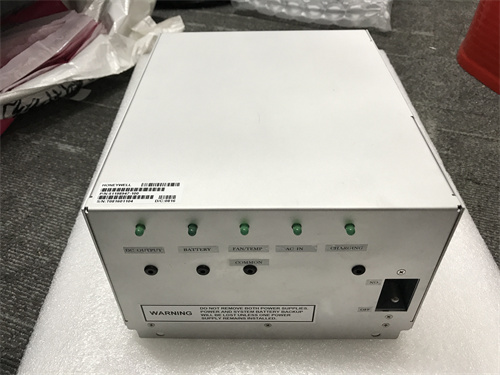

HONEYWELL 51198947-100 is a thermocouple module specifically designed for use in automation control systems. Here is a breakdown of its parameters, specifications, dimensions, weight, series, features, and applications in English:
Parameters and Specifications:
Brand: HONEYWELL
Model: 51198947-100
Control Principle: Customizable (Other)
Purpose: Automation Control
Measurement Range: 100-243
Accuracy: 0.1-0.43
Dimensions: 200x210x53mm
Power Supply: 24V
Current Range: 100-400A
Weight: 2KG
Features:
Ultra-temperature Alarm: Provides an audible alarm in the event of a temperature exceeding the set limit.
Display Capabilities: Displays measurement values or settings during malfunctions.
Alarm Indicator: Lights up during over-temperature or sensor issues.
Main Control Output Indicator: Shows the load voltage status.
Self-tuning Indicator: Indicates when self-tuning is active.
Function Setting Knob:Allows for adjustment of set values or parameters.
Incremental Adjustment Knobs:Used for numerical increments during adjustments.
Decremental Adjustment Knobs:Used for numerical decrements during adjustments.
Power Switch: Turns the power on or off.
Communication Options: Supports various communication interfaces, including RS232, RS485, USB, and LAN.
Embedded PID Functionality: Provides proportional-integral-derivative control.
Memory and Clock Module: Supports real-time clock and data storage.
High-speed Counter: Features 8 operation modes and can control high-speed counter outputs.
Input Handling: Supports 4-way interrupted inputs.
Output Handling: Supports 4-way latching inputs for capturing millisecond pulses.
ControllerInternals: Contains 2 adjustable analog potentiometers.
Terminal Block: Detachable for easier wiring and pre-assembly of cables.
Labeling: Supports writing of field device numbers on detachable I/O labels for easier maintenance.
Safety Standard: Complies with global safety standards for finger-touch-proof terminals.
Applications:
The HONEYWELL 51198947-100 thermocouple module is typically used in industrial automation and control systems, where it provides stable and efficient power supply for various devices and equipment. It is compatible with Honeywell’s automation control systems and can be integrated with other modules and components to achieve complex power management and monitoring tasks.
Series:
The HONEYWELL 51198947-100 belongs to the general family of Honeywell power modules and thermocouple modules. It is specifically designed for use with Honeywell’s automation control systems.
Size and Weight:
Dimensions: 200x210x53mm
Weight: 2KG
Please note that specifications, features, and applications may vary slightly depending on the specific model and its configuration. It’s always advisable to refer to the manufacturer’s official documentation or contact a sales representative for the most accurate and up-to-date information.
