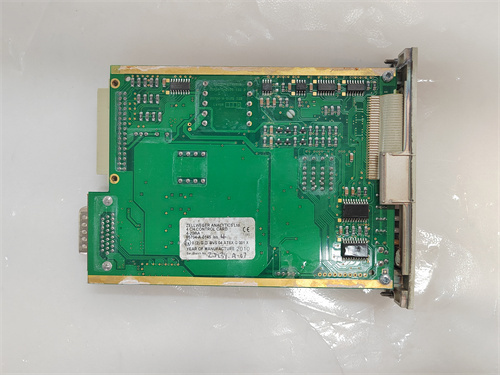

HONEYWELL 05704-A-0145

Description

The parameters of HONEYWELL 05704-A-0145 are as follows:

Manufacturer: Honeywell
Product Number: 05704-A-0145
Product type: four-channel control card
Input power consumption: 8.3W (Max), 7.5W (typical)
Loop supply output voltage: isolation 24V±5%, loop supply equipment maximum 25mA
Circuit protection: short circuit, open circuit voltage 50V
Configuration: Sensor current source
Measuring signal range: 0 to 25mA (linear)
Maximum line resistance: 500 ohms loop resistance, including sensor
Isolated breakdown voltage: > 50V dc to system 0V
Weight: 0.18Kg
Shipping weight: 2Kg
In addition, the HONEYWELL 05704-A-0145 can also provide a powerful gate control signal up to 4A, with dual output pins to provide additional flexibility for gate drives, and more

HONEYWELL 05704-A-0145 has the following features:

High performance. The module uses high-performance processor and algorithm to realize fast and accurate control and monitoring of multiple channels or devices
High reliability. The module has a highly reliable design and stable performance, and can operate stably in harsh industrial environments for long periods of time
High flexibility. The module supports a wide variety of input and output signals and can be used with a variety of sensors, actuators and other devices to meet a wide range of application requirements
Easy to maintain. The module’s design is simple and easy to use, easy to maintain, and can reduce downtime and maintenance costs
