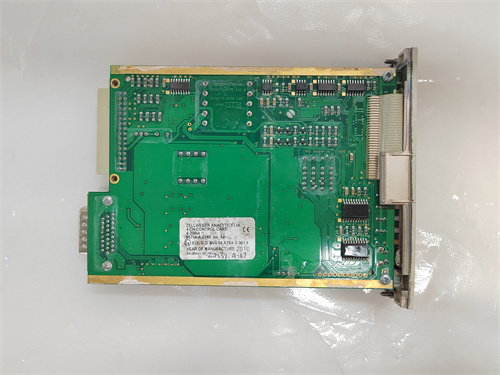

HONEYWELL 05704-A-0145

Description

Parameters and specifications:

Input power consumption: Maximum 8.3W, typical value 7.5W.
Loop supply output voltage: isolated 24V±5% adjustment.
Maximum current of loop power supply equipment: 25mA.
Measuring signal range: 0 to 25mA (linear).
Maximum line resistance: 500 ohm loop resistance including sensor.
Isolated breakdown voltage: > 50V dc to system 0V.
Input current: 500mA.
Output voltage: 24VDC.
Output power: 360W.
Input voltage range: 85~264VAC.

Size and weight:

Dimensions: 115mm x 48mm x 150mm.
Weight: Shipping weight is 2Kg, net weight is 0.18Kg.

HONEYWELL 05704-A-0145

HONEYWELL 05704-A-0145

Features:

Four-channel design: The control card has four independent control channels, which can process multiple input and output signals at the same time, and realize real-time monitoring and control of multi-parameters and multi-tasks.
High precision control: accurate position control, speed control and process control can be achieved to ensure the stability and accuracy of industrial processes.
A variety of communication interfaces: Support Ethernet, serial communication and other interfaces to facilitate data exchange and communication with other devices and systems.
