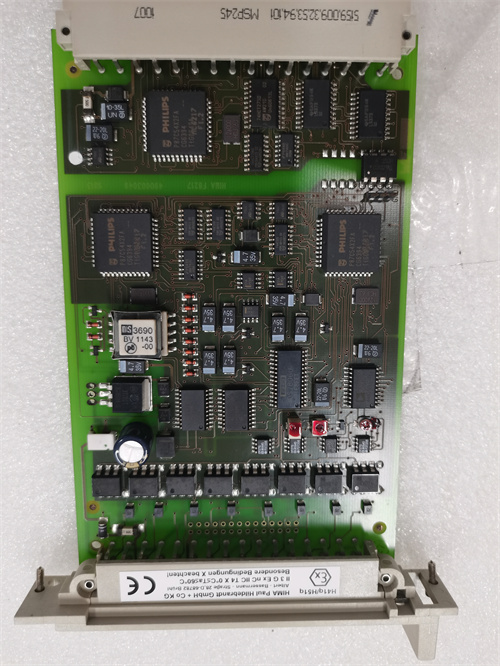

HIMA F6217

Product Description

Product Parameters

• Input Signal Types1: Current: 0/4 – 20 mA; Voltage: 0 – 5/10 V
• Maximum Input Voltage1: 7.5 V
• Maximum Input Current1: 30 mA
• Resolution2: 12 bits
• Accuracy1: Basic error: 0.1% at 25 °C; Operating error: 0.3% at 0 – +60 °C; Error limit for safety: 1%
• Safety1: Tested according to AK 6/SIL 3, safety isolation included
• Electric Strength1: 200 V against GND
• Power Supply1: 5 V DC: 80 mA; 24 V DC: 50 mA
• Input Resistance1: 100 kΩ
• Time Constant1: Approx. 10 ms
• Measurement Update1: 50 ms
• Safety Time1: < 450 ms

Advantages and Characteristics

• High Accuracy2: With a 12 – bit resolution, the F6217 provides high – precision data acquisition, ensuring accurate measurement and control in critical applications. For example, in a chemical production process, it can precisely monitor the concentration of reactants, allowing for precise control of the production process and improving product quality.
• Reliability: Built for high reliability, the F6217 is suitable for industrial safety systems. It has been tested according to AK 6/SIL 3 and features safety isolation, ensuring uninterrupted operation in critical applications. In the oil and gas industry, where safety is of utmost importance, this module can operate stably in harsh environments, helping to prevent accidents.
• Easy Integration: The module is easy to install and integrate into existing systems. It has an intuitive interface and comprehensive documentation, and users can easily configure settings and troubleshoot issues using the integrated diagnostic tools. This reduces installation and maintenance time and costs, improving overall system efficiency.

Application Areas and Application Cases

• Application Areas: The HIMA F6217 is widely used in industries such as oil and gas, petrochemical, power generation, and manufacturing. It is suitable for safety – critical applications where precise monitoring and control of process variables are required, such as in the control of chemical reactors, the monitoring of oil and gas pipelines, and the automation of manufacturing processes.
• Application Case: In a power generation plant, the HIMA F6217 is used to monitor the temperature, pressure, and flow rate of the steam in the boiler. By accurately measuring these process variables, the module helps to ensure the safe and efficient operation of the boiler. It sends the measured data to the safety controller, which can take appropriate action if any of the values deviate from the normal range, preventing potential accidents and improving the reliability of the power generation process.

Competitor Comparison

Selection Advice

• Compatibility: Ensure that the HIMA F6217 is compatible with your existing control system and sensors. Check the input signal types, communication protocols, and power supply requirements to ensure seamless integration.
• Installation Environment: Consider the installation environment, including temperature, humidity, and vibration. The F6217 is designed to withstand harsh industrial conditions, but it is still necessary to ensure that the installation location meets the module’s requirements to ensure reliable operation.
• Budget: While the HIMA F6217 offers high performance and reliability, it is also necessary to consider the budget. Compare the prices of different suppliers and choose a product that meets your needs and budget.

Precautions

• Installation: Follow the installation instructions in the user manual carefully. Ensure that the power is off before installation and that the module is properly aligned and secured in place.
• Operation: Do not exceed the maximum input voltage and current ratings. Regularly check the module’s operation and monitor for any error messages or abnormal behavior.
• Maintenance: Perform regular maintenance according to the manufacturer’s recommendations, including cleaning the module and checking for loose connections. Replace any damaged components in a timely manner to ensure the continued reliable operation of the module.
