Description
Parameters and specifications:
Brands: EMERSON (Chinese), EMERSON Network Power(English).
Model: HD22020-2.

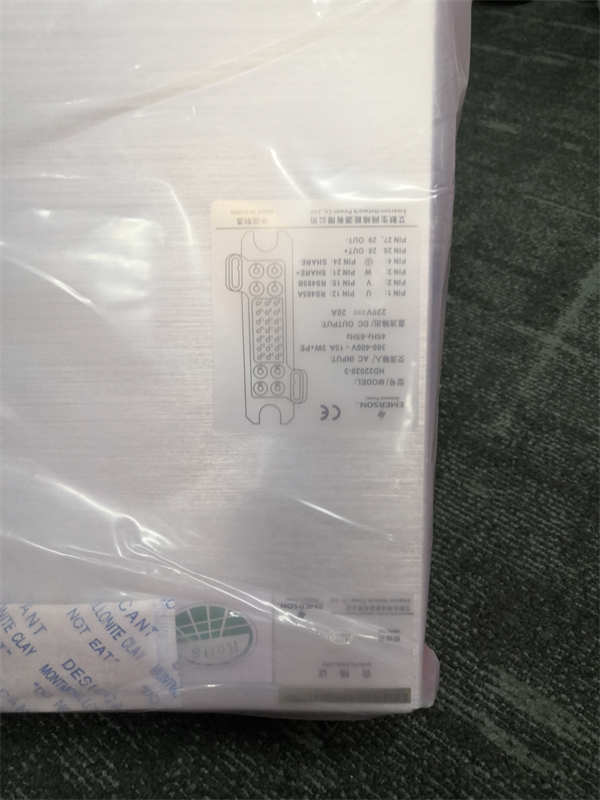

Ac input: 380-415V to 10A 3W+PE 50/60 Hz.
Dc output: 220V—–20A.
Working environment:
Suitable for indoor and outdoor use.
Ambient temperature: -40℃~+40℃.
Altitude does not exceed 3000m (porcelain sleeve type does not exceed 1000m).
The power supply frequency is not less than 48Hz, not more than 62Hz.
Earthquake intensity of 8 degrees and below.
The wind speed is not more than 35m/s.
Size and weight:

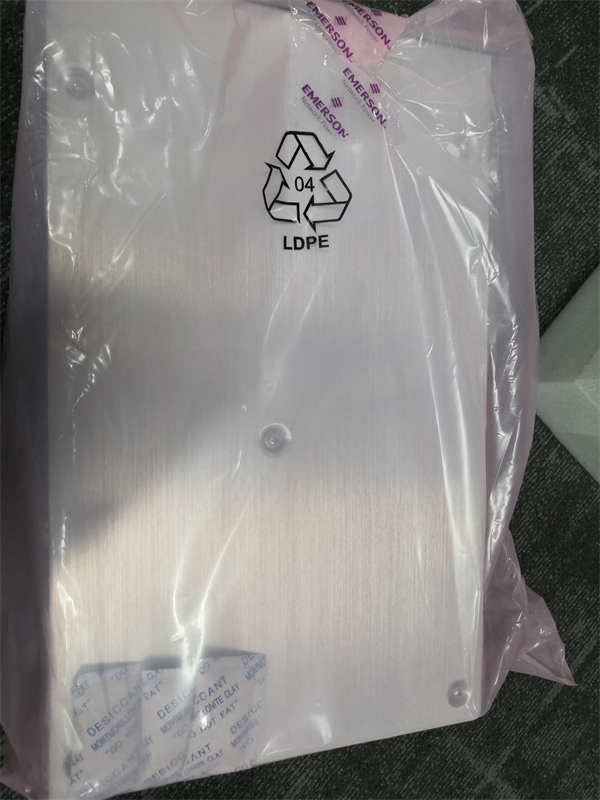

Size: There are two different size data, one is the outer packaging shape of 772mm622mm255mm (length, width and height), the other is 257mm110mm413mm (height, width and depth).
Weight: There are also two kinds of data, one is the weight of the module is 25kg, the other is the weight of the whole machine is less than 8.5kg.
Series:
HD22020 series.
Features:
Operation reliability and life: mechanical life of up to 30,000 times, full capacity short-circuit current can be broken up to 50 times, with extremely high operational reliability and service life.
Protection: Suitable for anti-pollution type and plateau type, can be used under different environmental conditions.
Structure: The use of vertical insulation cylinder or solid insulation structure – integrated solid seal pole, to achieve maintenance-free.
Installation form: can be fixed, can also be withdrawable, can also be installed on the frame for use.
Functions:
HD22020-2 is an overvoltage (current) protector, Mainly used to protect power systems, railway electrification systems, communication systems in various electrical equipment (transformers, switches, capacitors, stoppers, transformers, generators, electric power, power cables, etc.) from atmospheric overvoltage, current operating overvoltage (current) and power frequency transient overvoltage (current) damage.
It is the equipment that the substation is protected from the lightning shock wave.
It can also be used in the DC panel of the power distribution room or the module of the DC panel of the high voltage room for charging.
