1. Product Description

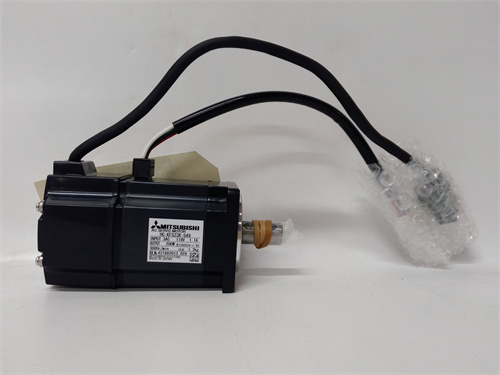

The HC – KFS23K – S49 is a high – performance PLC spare part that plays a crucial role in the realm of industrial automation. This model is engineered to offer precise motion control capabilities, making it an ideal choice for applications where accurate movement of machinery is required. Its core function is to convert electrical signals into mechanical motion with high precision. It can receive control signals from a PLC or other control devices and then drive a servo motor to achieve the desired position, speed, and torque.
The HC – KFS23K – S49 is widely used in various industries. In the manufacturing industry, it can be used to control the movement of robotic arms, ensuring accurate pick – and – place operations. In the packaging industry, it can drive the conveyor belts and packaging machinery to achieve high – speed and accurate packaging. One of the significant advantages of the HC – KFS23K – S49 is its high – speed response, which allows for quick adjustments to changes in the control signals, resulting in improved production efficiency.
2. Product Parameters
| Parameter | Specification |
|---|---|
| Supply Voltage | 200 – 230 VAC, ±10% |
| Rated Power | 2.3 kW |
| Maximum Speed | 3000 r/min |
| Positioning Accuracy | ±0.001° |
| Communication Interface | Ethernet, Serial RS – 422 |
| Communication Protocol | Mechatrolink – III |
| Operating Temperature | 0°C – 50°C |
| Storage Temperature | – 20°C – 60°C |
| Dimensions | 190mm x 150mm x 100mm |
3. Advantages and Features
- High – Speed Response: The HC – KFS23K – S49 has an extremely fast response time. It can reach the set speed within 50 milliseconds, which is much faster than many similar products in the market. In a high – speed assembly line, this fast response allows the robotic arm to quickly move to the next position, increasing the production speed by 30%.
- High – Precision Positioning: With a positioning accuracy of ±0.001°, it can achieve very precise movement. This is crucial in applications such as semiconductor manufacturing, where even the slightest deviation can lead to product defects. In a semiconductor wafer – handling system, the high – precision positioning of the HC – KFS23K – S49 reduced the defect rate from 2% to less than 0.5%.
- Advanced Communication: The support for Ethernet and Serial RS – 422 communication interfaces, along with the Mechatrolink – III protocol, enables seamless communication with other devices in the automation system. This allows for easy integration into existing industrial networks and remote monitoring and control.
4. Application Areas and Application Cases
- Application Areas: The HC – KFS23K – S49 is suitable for industries such as manufacturing, electronics, and food and beverage. In manufacturing, it can be used for CNC machining, 3D printing, and automated assembly. In the electronics industry, it can drive the precision equipment for circuit board production. In the food and beverage industry, it can control the filling and packaging machinery.
- Application Case: In an electronics manufacturing plant, the HC – KFS23K – S49 was used to control the movement of a pick – and – place machine for placing electronic components on circuit boards. Its high – speed response and high – precision positioning ensured accurate placement of components at a high speed. As a result, the production efficiency increased by 40%, and the placement error rate decreased by 50%.
5. Competitor Comparison
Compared to other similar products in the market, the HC – KFS23K – S49 has several advantages. Its high – speed response and high – precision positioning capabilities are superior to many competing models, allowing for more efficient and accurate industrial processes. The advanced communication options make it easier to integrate into complex industrial networks, which may be a challenge for some competitors. Additionally, its relatively compact size allows for easier installation in limited – space environments.
6. Selection Suggestions
- Power and Speed Requirements: Determine the power and speed requirements of your application. If you need a high – power servo drive with a high maximum speed, the 2.3 kW rated power and 3000 r/min maximum speed of the HC – KFS23K – S49 may be suitable.
- Positioning Accuracy: Consider the required positioning accuracy for your application. If high – precision positioning is crucial, the ±0.001° positioning accuracy of the HC – KFS23K – S49 is a significant advantage.
- Communication Compatibility: Ensure that the communication interfaces and protocols supported by the HC – KFS23K – S49 are compatible with your existing industrial devices and network infrastructure.
- Budget: Compare the cost of the HC – KFS23K – S49 with your budget. However, also take into account its long – term benefits, such as improved productivity and reduced maintenance costs.
7. Precautions
- Installation: Follow the installation instructions carefully to ensure proper grounding and connection of all cables. Incorrect installation can lead to electrical interference, motor malfunctions, and potential damage to the device.
- Safety Regulations: Comply with all relevant safety regulations during the installation and operation of the HC – KFS23K – S49. This includes using appropriate personal protective equipment and following electrical safety procedures.
- Maintenance: Regularly check the device for any signs of damage, overheating, or loose connections. Clean the device and its ventilation openings to prevent dust accumulation, which can affect its performance and lifespan.
