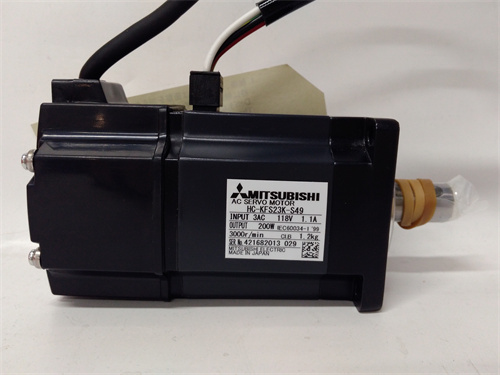

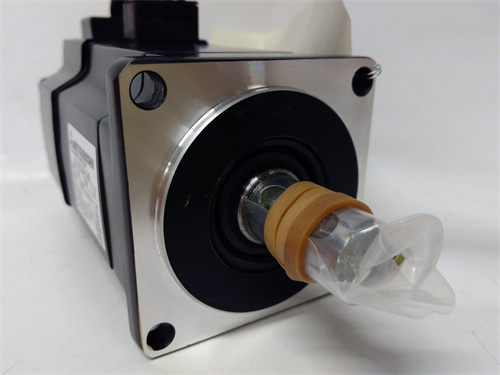

HC-KFS23K-S49

Description

Parameter Specifications

1. Power Supply
   The HC – KFS23K – S49 typically operates on a three – phase AC power supply, usually rated at 200 – 230V. The power consumption varies depending on the load and operating conditions, but it is designed to be energy – efficient.
2. Motor Specifications
   • Rated Power: It has a rated power of 0.2kW, which is suitable for medium – sized industrial applications that require a certain level of torque and speed control.
   • Rated Speed: The rated speed is around 3000 rpm. This allows for relatively high – speed operation in many industrial processes.
   • Torque: The rated torque is approximately 0.64 Nm, providing sufficient force for driving various mechanical loads.
3. Encoder Resolution
   It is equipped with an encoder that offers a high – resolution feedback. The encoder resolution is often 20 – bit (1,048,576 pulses per revolution), which enables precise control of the motor’s position and speed.
4. Communication Interface
   The HC – KFS23K – S49 supports communication interfaces such as CANopen and Modbus RTU. These interfaces allow for seamless integration with other industrial devices, such as Programmable Logic Controllers (PLCs) and Human – Machine Interfaces (HMIs).

Uses

1. Industrial Automation
   • In manufacturing plants, it can be used to drive conveyor belts, robotic arms, and other automated equipment. The precise speed and position control capabilities ensure accurate movement and operation of these devices.
2. Packaging Machinery
   • For packaging machines, the HC – KFS23K – S49 can control the movement of packaging materials, such as film unwinding and product filling mechanisms. Its high – resolution encoder enables accurate positioning for proper packaging.
3. Printing Industry
   • In printing presses, it can drive the rollers and other moving parts. The ability to maintain a stable speed and precise position helps in achieving high – quality printing results.

Weight and Dimensions

1. Weight
   The motor weighs approximately 1.5 – 2 kg, which is relatively light, making it easy to install and handle during the setup process.
2. Dimensions
   It has a compact design with dimensions around 100mm (length) x 100mm (width) x 120mm (height). This small size allows it to be installed in limited – space industrial environments.

Characteristics

1. High – Precision Control
   With its high – resolution encoder and advanced control algorithms, the HC – KFS23K – S49 can achieve precise speed and position control, ensuring accurate operation in various applications.
2. Fast Response
   The motor has a fast response time, which means it can quickly adjust its speed and torque according to the control signals. This is crucial for applications that require rapid changes in operation.
3. Energy Efficiency
   It is designed to be energy – efficient, reducing power consumption and operating costs over the long term.

Stability and Reliability

1. Robust Construction
   The HC – KFS23K – S49 has a durable housing and high – quality internal components. It can withstand normal industrial vibrations, dust, and temperature variations within a certain range.
2. Fault Protection
   It is equipped with various fault protection functions, such as over – current, over – voltage, and over – temperature protection. These functions help prevent damage to the motor and ensure reliable operation.
3. Long – Term Testing
   The motor has undergone extensive long – term testing under different operating conditions to ensure its stability and reliability over a long service life.

Actual Cases

1. Automated Conveyor System
   In an e – commerce warehouse, the HC – KFS23K – S49 was used to drive a conveyor belt. The precise speed control of the motor ensured that the packages were transported at a consistent rate, improving the efficiency of the sorting process.
2. Robotic Assembly Line
   In a consumer electronics manufacturing plant, the motor was installed on a robotic arm. The high – precision position control allowed the robotic arm to accurately pick and place small electronic components, enhancing the quality and productivity of the assembly line.
