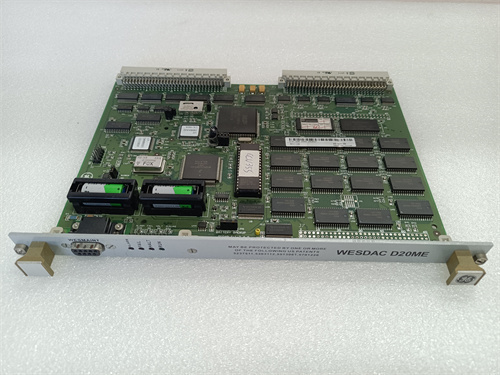

GE WESDAC D20ME

Description

Parameters:

• Bus Type: PROFIBUS DP
• Transmission Rate: 9600 bps to 12 Mbps
• Node Quantity: Maximum 31
• Processing Power: 32-bit main processor capable of executing complex control logic and algorithms¹
• Resolution: 20-bit
• Sampling Rate: 100kSPS
• Power Supply Voltage Range: +5VDC, +15VDC, -15VDC
• Output Voltage Range: -10VDC to +10VDC²

Specifications:

• Model: WESDAC D20ME
• Processor: 32-bit RISC, Clock Speed 40 MHz²
• Memory: 512 KB RAM, 2 MB Flash³
• I/O Points: Maximum expandable to 256 points³
• Communication Interfaces: RS-232, RS-485, Modbus²³
• Operating Temperature: -40°C to +85°C²
• Storage Temperature: -40°C to 85°C³
• Relative Humidity: 5% to 95% (non-condensing)²
• Size: 230mm x 160mm x 80mm³, 3U VME size², or 300mm x 200mm x 100mm⁴
• Weight: 5kg¹, or 1.5kg⁵

Series:

• WESDAC D20 Series Control Modules³

Features:

• High Precision: Utilizes advanced digital control technology to ensure high-precision signal conversion and processing¹.
• High Reliability: High reliability and stability, meeting various industrial automation control needs¹.
• Remote Control Support: Supports remote control with the use of appropriate controllers¹.
• Waterproof Function: IP65 protection grade¹.
• Expandable: Supports multiple I/O modules for easy system integration and expansion¹³.
• Compliant: Compliant with IEC 61131-3 standard, with simple and easy programming¹³.
• User-friendly: Designed for easy installation and use, improving work efficiency¹³.
• Safety Functions: Monitors signal abnormalities or out-of-range conditions and takes appropriate measures to ensure system safety and stability¹.
• Real-time Operation: Capable of real-time or near-real-time data processing and control⁶.
• Multi-channel Support: Supports multiple input and output channels for monitoring and controlling multiple devices or processes⁶.

Applications:

• Widely used in industries such as power, petroleum, and chemical engineering
