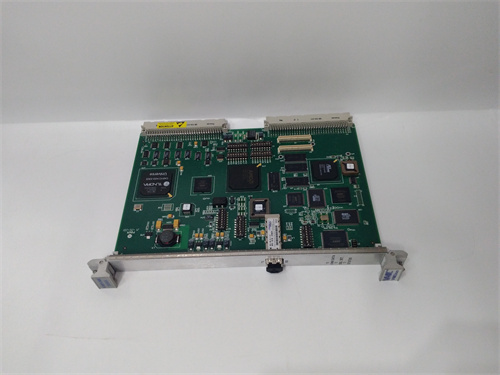

GE VMIVME-5565

Description

Parameters and Specifications:

• Interface: VMEbus¹
• Transfer Rate: 43 Mbyte/s (4 byte packets) to 174 Mbyte/s (64 byte packets)¹²³
• Dynamic Packet Size: 4 to 64 bytes of data²³
• Maximum Nodes: Up to 256 nodes²³
• Fiber Connection: Multimode fiber up to 300m, single mode fiber up to 10km²³
• Memory: 64 Mbyte or 128 Mbyte SDRAM Reflective Memory²³
• DMA Channels: Two independent DMA channels¹²
• VMEbus Transfer Rate: 40 Mbyte/s²

Dimensions and Weight:

• Size: Not specified. However, the VMIVME-5565 is a VMEbus board, typically with a 6U VMEbus form factor¹.
• Weight: Approximately 200g¹

Series:

• The VMIVME-5565 belongs to GE’s VMEbus board series.

Features:

• High-Speed Fiber-Optic Network: Provides a fast and efficient way of sharing data across distributed computer systems¹²³⁴.
• Reflective Memory: Data written to memory in one node is also written to memory in all nodes on the network²³.
• Interrupts: Any node on the network can generate an interrupt in any other node or in all network nodes with a single command²³.
• Error Detection: Provides error detection for extra error suppression²³.
• Redundant Transfer Mode: Ensures data reliability²³.
• No Processor Overhead: No processor involvement in the operation of the network²³.

Applications:

• The VMIVME-5565 is designed for industrial and embedded computing applications that require high-speed data sharing and processing¹²³. It is suitable for complex data acquisition and processing tasks¹.
