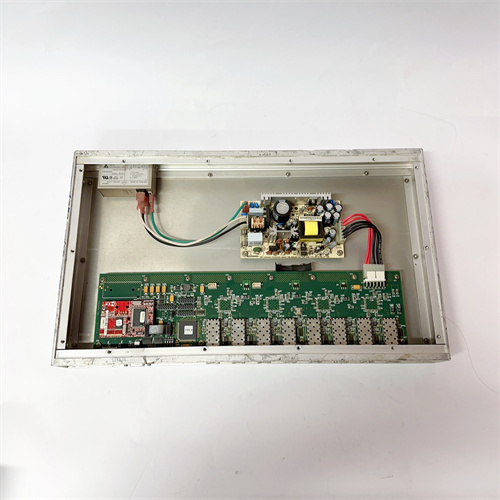

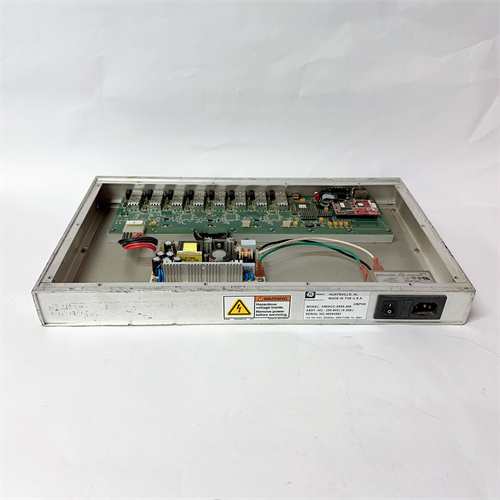

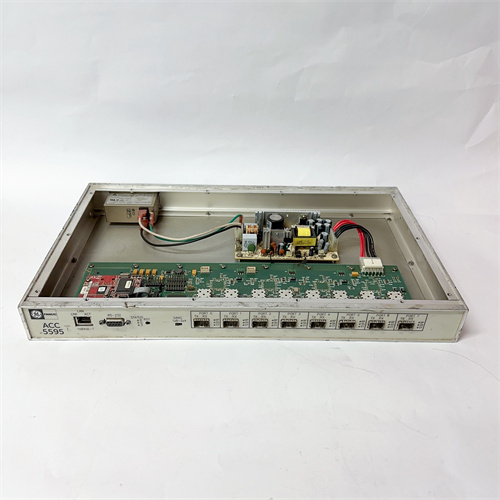

GE VMIACC-5595

Description

Parameters and Specifications:

• Working Voltage: +5V DC
• Operating Temperature Range: 0°C to +60°C
• Storage Temperature Range: -40°C to +85°C
• Architecture: VME64x
• Maximum Data Transfer Rate: 320MB/s
• Supported Operating Systems: Windows, Linux, VxWorks, etc.
• Dimensions: 149.86mm x 20.32mm x 220.96mm
• Weight: 0.45kg

Series:

• VMIACC Series

Features:

• Reflective Memory Hub: Designed to work with GE Fanuc embedded systems’ VMIxxx-5565 series Reflective Memory real-time network products. It allows other nodes in the network to maintain operation in case of signal loss or loss of valid synchronization patterns¹.
• Pluggable SFP Transceivers: Optical ports utilize pluggable small form-factor (SFP) transceivers that can be multi-mode (short-range) or single-mode (long-range) combinations¹.
• Scalability: For larger networks, several VMIACC-5595 components can be cascaded to allow for managed hub arrays with up to 256 nodes¹.
• High-Performance: Utilizes advanced technology and materials for precise and reliable performance in power electronic equipment².

Applications:

• GE VMIACC-5595 is primarily used as a high-performance current sensor for measurement and control applications in power electronic devices such as electronic meters, power regulators, and power inverters².
