Description

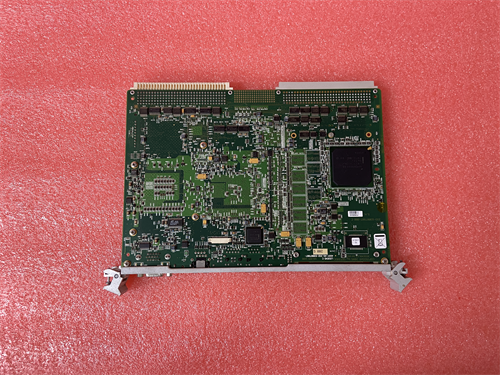

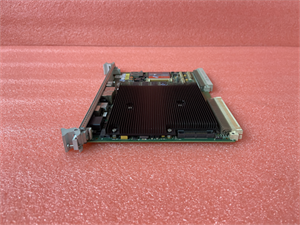

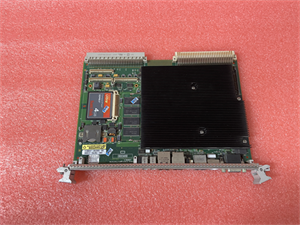

GE VME-7807RC Parameters, Specifications, Dimensions, Weight, Series, Features, and Applications (English)
Parameters:
Processor Type: Intel® Pentium® M.
Processor Speed: Available in 1.1 GHz, 1.4 GHz, or 1.8 GHz options.
Memory: Up to 1.5 Gbyte DDR SDRAM, with optional ECC support.
Flash Memory: Up to 2 Gbyte of optional CompactFlash.
Specifications:
Cache Memory: 2 Mbyte of L2 cache for the 1.4 GHz and 1.8 GHz options, and 1 Mbyte for the 1.1 GHz option.
System Bus: 400 MHz.

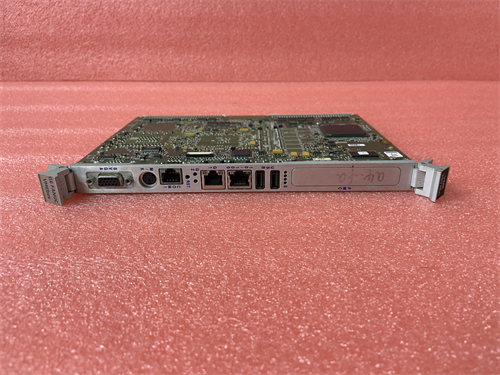

Ethernet Connectivity: Features front-mounted 10/100 BaseTX and 10/100/1000 BaseTx Ethernet ports, with an optional VITA 31.1 compliant 2 Gigabit Ethernet port.
I/O Ports: Includes four serial ports, four USB 2.0 ports, and support for SATA.
Dimensions and Weight:
Dimensions: 90 x 110 x 60 mm (length x width x height).
Weight: 1.2 kilograms.
Series:
GE VME-7807RC belongs to the GE Fanuc series of VMEbus single-board computers.
Features:
Flexible and Versatile: The VME-7807RC is a highly flexible SBC, suitable for various applications due to its powerful processor and expandable memory options.
High Bandwidth and Processing Power: With its high-frequency processor options, it provides excellent performance for I/O-intensive applications.
Multiple Operating System Support: Supports Windows® XP, Windows 2000, VxWorks®, QNX, and Linux® operating systems.
Industrial Compliance: Complies with RoHS and VITA 31.1 standards, making it suitable for industrial use.
Applications:
Industrial Automation: Used in industrial automation systems for monitoring, controlling, and optimizing industrial processes.
Aerospace and Military: Applied in avionics, navigation systems, and military equipment such as communication devices and radar systems.
Medical Equipment: Incorporated into medical devices like imaging systems and patient monitoring equipment.
Transportation: Utilized in traffic signal control, railway signaling, and other transportation-related applications.
Scientific Research: Employed in laboratory equipment, data acquisition systems, and scientific research applications.
