Description

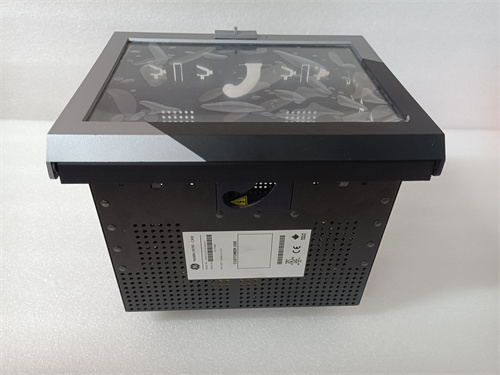

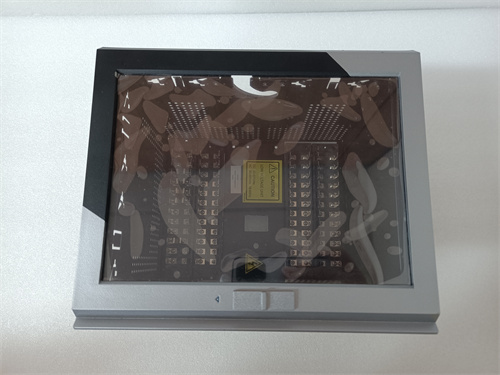

The GE SR750-P5-G1-S1-HI-A20-R is a feed line management relay and protection device that offers advanced functionality for medium-voltage distribution systems. Here is a breakdown of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Rated Voltage and Current: This relay typically operates within a range of rated voltages and currents suitable for medium-voltage systems.
Protection Functions: It provides various protection functions such as overcurrent, grounding, and differential protection to safeguard the power system against faults.
Dimensions and Weight:
Exact dimensions and weight may vary depending on the specific configuration and packaging. It is recommended to refer to the official product documentation or contact the manufacturer for precise measurements.
Series:
The SR750-P5-G1-S1-HI-A20-R belongs to the GE Multilin series of relays and protection devices.
Features:
Multiple Input Configurations: It offers multiple phase current inputs and zero-sequence current inputs, providing comprehensive monitoring and protection.
Wide Operating Range: It can operate within a wide range of control power, including 88 to 300 VDC, 70 to 265 VAC, and 48 to 62 Hz.
Self-Assessment Capability: It has the ability to simulate system processes without external current input or AC voltage, generating values stored in a tracking memory for further analysis.
Flexible Output Configuration: The relay has multiple output relays that can be configured according to user needs.
Communication Capabilities: It supports communication interfaces, allowing for seamless integration into larger automation and control systems.
Functions and Applications:
The GE SR750-P5-G1-S1-HI-A20-R is primarily used in medium-voltage distribution systems to protect and control feed lines. It detects faults and trips circuit breakers to isolate the faulted section, minimizing downtime and maintaining the stability of the power system.
It finds applications in various industries, including utilities, industrial manufacturing, and commercial facilities, where reliable and efficient power distribution is crucial.
