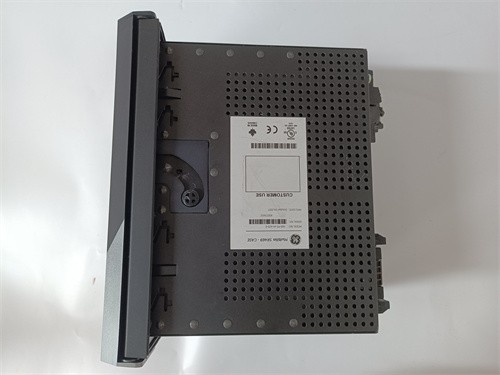

GE SR469-P5-HI-A20-E

Description

Parameters and Specifications:

• Input Voltage: 70-265 VAC, 90-300 VDC¹
• Control Power: 5A phase secondary²
• Operating Temperature: -25°C to +55°C³, also stated as -10°C to 70°C (-40°C to +85°C optional)⁴
• Storage Temperature: -40°C to +70°C⁴
• Humidity: ≤90% (non-condensing)⁴
• Dimensions: 120mm x 90mm x 50mm⁴, also stated as 100mm x 150mm x 70mm³
• Weight: Not explicitly stated.

Series:

• GE Multilin SR 469 Motor Management Relay Series²⁵

Features:

• Protection Functions: Overload protection, short-circuit protection, and phase loss protection⁵.
• High Performance: Uses high-quality materials and advanced manufacturing processes⁵.
• Easy Installation and Use: Compact design, DIN rail mounting, and user-friendly configuration³⁶.
• Longevity and Reliability: Made of heat-resistant and corrosion-resistant materials⁵.
• Modular Design: Allows for easy installation, maintenance, and expansion⁶.
• Multiple Alarm Functions: Fault alarm, overload alarm, and other alarms for timely detection of motor faults⁶.
• Programmable Control: Supports different control logic through programming⁶.
• Enhanced Front Panel Design: Includes RS-232 programming port, LCD display, and indicators²

Applications:

• Designed for medium-voltage motors².
• Widely applicable in various industries, such as industrial automation, power, transportation, and construction⁶.
