Description

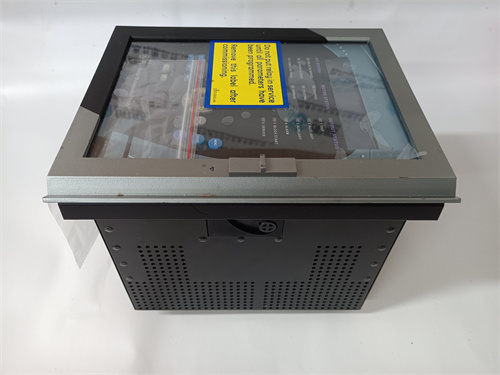

The GE SR469-P5-HI-A20-E is a motor management relay designed for demanding applications with strong protection, high performance, and ease of installation and use. The following is a specific description of its parameters, specifications, dimensions, weight, series, characteristics and functions:
Parameters and specifications:
Input voltage: The input voltage varies depending on the model and application. Some versions have input voltages of 24VDC and 48VDC, while others support inputs of 100-240VAC.
Output voltage: Generally 24VDC.
Maximum current: The maximum output current is 10A.
Maximum power: 240W.
Operating temperature: According to different data, its operating temperature range is different. One is -25 ° C to +55 ° C, and the other is -40 ° C to +85 ° C.
Storage temperature: -40℃ to +70℃.
Protection level: IP20.
Communication protocol: Support Modbus TCP, Modbus RTU, ABB Jokab Safety, ABB AC500, etc.
Size and weight:
Size: The exact size varies depending on the description. One is 100mm x 150mm x 70mm, the other is 100mm x 50mm x 20mm.
Weight: According to the data, its weight is 0.3kg or 1.2kg.
Series:
Series: SR 469 series.
Features:
Protection function: With overload, short circuit and phase loss protection function, can cut off the power supply in time when the motor or circuit is abnormal, to protect equipment and personal safety.
High-precision detection: The use of high-quality materials and advanced technology manufacturing, with high sensitivity and fast response characteristics, can real-time monitoring of the motor current, voltage, temperature and other parameters.
Front panel design: With an enhanced front panel, it is well-designed and easy to use. Includes an RS-232 program port interface with 9600 baud rate and is programmable up to 19200 baud rate. In addition, it has a sealable withdrawal handle to prevent any unauthorized removal. The front panel also has a large 40-character LCD display that allows users to view diagnostic messages such as tripping or alarms locally.
Easy to install and use: compact design, easy to install, simple to use. You can configure and adjust it as required.
Ethernet port: The “T” in the part number indicates that optional Ethernet enhancements have been added, and an SR469 housing with a slit on the back must be used to enable access to the port.
Functions:
Management and protection: mainly used for the integrated management and protection of medium voltage motor, providing powerful protection functions to ensure the normal operation and safety of the motor.
Industrial automation control: widely used in a variety of industrial automation control systems, such as machinery manufacturing, power, water treatment, chemical and other fields.
