Description
GE SR469-P5-HI-A20 is a motor management relay specifically designed for high-performance industrial applications. Here is a detailed overview of its parameters, specifications, dimensions, weight, series, features, and applications in English:
Parameters and Specifications:
Control Power Ratings: The relay supports a control power rating of 90-300 volts DC and 70-265 volts AC, with a frequency range of 48-62 Hz.
Input Voltage Range: The input voltage range is 100-240 VAC.
Output Characteristics: It provides four analog outputs of 4-20 mA.
Dimensions and Weight:
Dimensions: The dimensions of the relay are approximately 115mm x 48mm x 150mm (length x width x height).
Weight: The exact weight may vary, but it is comparable to other industrial relays of similar size and complexity. It is recommended to refer to the manufacturer’s specifications for the exact weight.
Series:
The SR469-P5-HI-A20 belongs to the GE Multilin series of motor management relays.
Features:
Protection Functions: The relay offers overload, short-circuit, and phase-loss protection, ensuring the safety of the motor and circuit during abnormal conditions.
High Sensitivity and Fast Response: With high-quality materials and advanced manufacturing processes, it exhibits high sensitivity and rapid response times, accurately detecting and responding to motor conditions.
Ease of Installation and Use: The relay is designed for compact installation and simple operation, with user-friendly configuration and adjustment options.

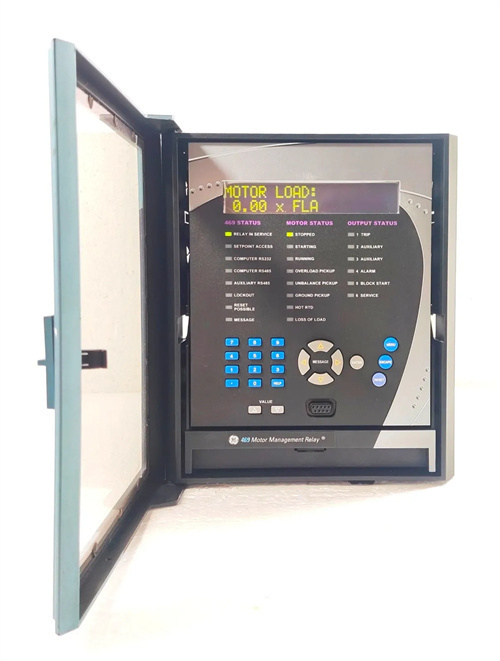

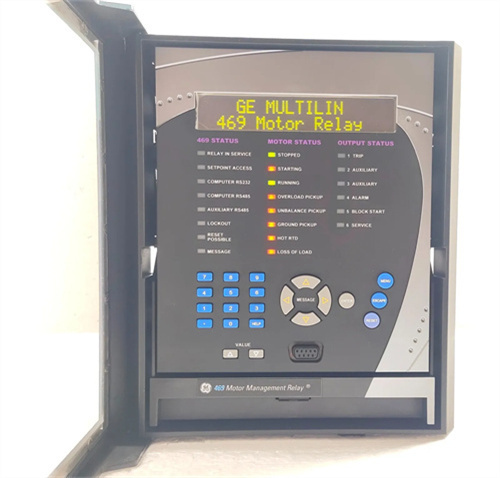

Front Panel Design: The front panel includes an LCD display for local monitoring of diagnostic messages, such as trips or alarms, and a programmable RS-232 program port interface.
Applications:
The GE SR469-P5-HI-A20 motor management relay is suitable for various industrial automation and power applications, including motor control and protection in medium-voltage systems. It can be widely used in sectors such as industrial automation, power generation, transportation, and building automation.
