Description
GE PCH1026 is a digital structural vibration monitoring instrument designed for industrial applications. Here is a summary of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Functionality: PCH1026 is primarily used for monitoring the vibration levels of rotating equipment such as pumps, fans, compressors, and generators.
Vibration Analysis: It can measure and analyze various vibration parameters like acceleration, velocity, and displacement, enabling the assessment of equipment health and operational status.
Alarm and Fault Detection: The instrument typically features an alarm function that triggers when vibration exceeds preset thresholds, facilitating timely intervention to prevent equipment failure.
Data Analysis: PCH1026 records vibration data for subsequent analysis and trend monitoring, aiding in predicting potential faults and optimizing maintenance schedules.
Dimensions and Weight:
The PCH1026 has compact dimensions, with some sources reporting a size of 100mm x 26mm x 10mm and a weight of approximately 20 grams. However, there may be variations in dimensions depending on the specific model or configuration, with another source listing dimensions as 254x130x66 mm. It is recommended to refer to official documentation for accurate dimensions.
Weight:
As mentioned earlier, the PCH1026’s weight is approximately 20 grams in some models. However, this may vary depending on the specific version or accessories included.
Series:
PCH1026 belongs to GE’s line of vibration monitoring instruments, specifically designed for industrial applications. The exact series name may vary depending on the manufacturer’s classification.
Features:
Programmable Controller: PCH1026 can be programmed for various tasks and settings, making it adaptable to different industrial environments.

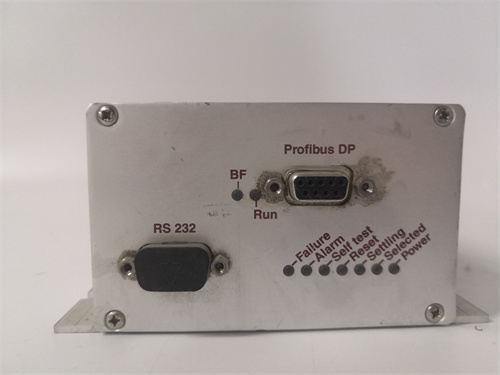

Easy Integration: It supports fieldbus communication protocols, facilitating data transmission and integration with other systems.

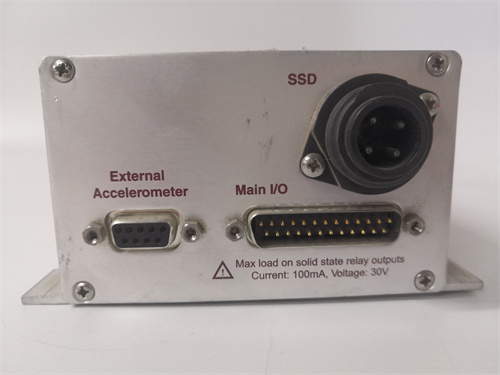

Safety and Reliability: The instrument may feature certifications like Germanischer Lloyd’s Safety Shock Detection (SSD) relay, enhancing its safety and reliability in industrial applications.
Rugged and Sealed Design: PCH1026 is designed to be a standalone monitor in a sealed and robust enclosure, ensuring durability and reliability in harsh environments.
Functions and Applications:
Vibration Monitoring: PCH1026 is suitable for low-frequency structural vibration monitoring applications and can monitor a wide range of mechanical equipment.
Fault Detection: It can detect abnormalities in vibration signatures, such as imbalance, bearing faults, alignment issues, and mechanical wear, helping to predict equipment failures.
Real-time Monitoring: PCH1026 provides real-time monitoring capabilities, enabling operators to view equipment vibration status and take necessary actions promptly.
Please note that specifications, dimensions, and features may be subject to change or may vary depending on the manufacturer’s updates or specific product versions. It is always advisable to consult the official product documentation or contact the manufacturer for the most accurate and up-to-date information. Additionally, when installing or operating such industrial equipment, please ensure compliance with all safety procedures and regulations.
