Description
Parameters and specifications:
Input voltage: 24V DC nominal.
Input current: <30mA.
Output voltage: 24V DC nominal.
Output current: 2A per channel.
Communication rate: All DeviceNet/CANOpen and common CAN rate levels, up to 1M.
Operating ambient temperature: -10-70 °C (or -20°C to +60°C, depending on the data).
Storage temperature: -40°C to +85°C.
Humidity: ≤90% (or 5% to 95%, depending on the data) (no condensation).
Size and weight:
Dimensions: 132mm105mm52mm (H W W), or 15.2 x 10.4 x 3.2 cm, or 4.5 “x 3.5” x 1.5 “(in).
Weight: 800g, or 0.25 kg, or 0.5 lb.
Series:
GE Mark VIe series or other related series.
Features:
Digital input/output: Supports 16 input points and 16 output points.
Compatibility: Supports the CAN BUS/DeviceNet/CANOpen bus standards.
Protection function: 4000V lightning protection, 1.5A overcurrent protection and 600W surge protection.
Electrical isolation: DC1500V voltage isolation.
Ports: Include 5-PIN terminal ports and optical fiber ports (such as SC, FC, and ST).
Mechanical characteristics: IP30 protection grade, corrugated aluminum reinforced housing, support 35mm rail installation.
Functions:

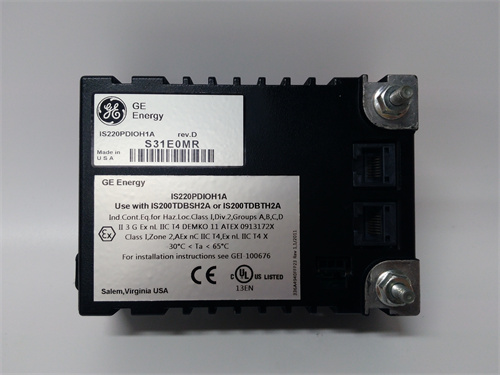

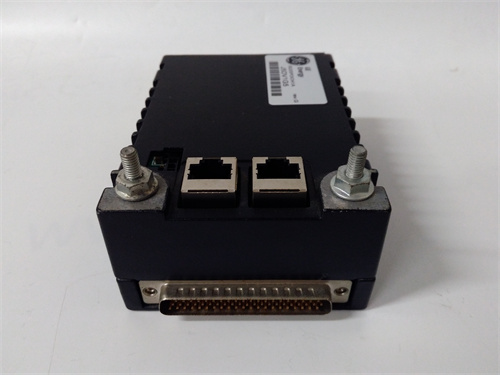

The IS220PDIOH1A is a digital input/output module commonly used in industrial automation systems, DCS (distributed control systems), and other applications where digital I/O functions are required.
It can be connected with PLC (Programmable logic controller) and other automation devices for control, monitoring and data transmission functions.
The module is suitable for a variety of industrial environments, such as petroleum, chemical, power and pharmaceutical fields, to improve production efficiency and product quality.
