Description
Parameters and specifications:
Power supply: Dual power supply redundant input, DC(9-36)V, typical DC24V, power consumption less than 4W.
Data electrical interface: one or two 5-pin terminal interfaces, which comply with CiA and ODVA recommendations, support CAN BUS/DeviceNet/CANOpen bus standards, and the communication rate can reach 1M.
Optical fiber interface: Optical fiber wavelength includes multi-mode 850nm, 1310nm, single-mode 1310nm, 1550nm; The transmission distance is 2Km for multi-mode and 20Km for single-mode.
Input/output channels: With 16 digital input channels and 16 digital output channels, compatible with a variety of voltage and current input/output types.
Isolation voltage: DC1500V, photoelectric isolation voltage up to 1500V.
Lightning protection and protection function: with 4000V lightning protection and 1.5A overcurrent protection and 600W surge protection function.
Working environment: Working temperature -10-70℃ (wide temperature optional -40~+85℃), relative humidity ≤90% (no condensation), storage temperature -40~ 80℃.
Size and weight:
Size: 132mm105mm52mm (high depth and wide).
Weight: about 800g.
Series:

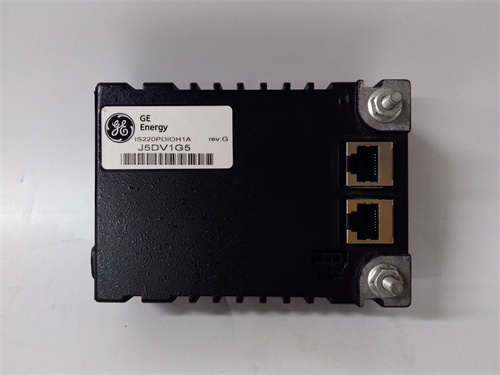

The GE IS220PDIOH1A belongs to GE’s family of industrial interface modules.
Features:
High reliability: The correct grounding mode can suppress the influence of electromagnetic interference and improve the anti-interference ability of the system.
Multi-protection function: It has a variety of protection functions such as over-current protection, over-voltage protection and under-voltage protection.
Multiple interface and protocol support: with a variety of communication interfaces and support a variety of communication protocols, convenient for users to carry out data transmission and remote control.
Plug and play: The system automatically identifies the module type to achieve plug and play.
Industrial terminal interface: A combination of industrial terminal groups is configured. The cage, cage bottom plate, terminal board, and connecting cable are removed to facilitate user maintenance.
Functions:
GE IS220PDIOH1A is widely used in various industrial fields requiring DCS control systems, such as petroleum, chemical, electric power, pharmaceutical and so on. In these areas, the module enables various control and monitoring functions to improve production efficiency and product quality.
