Description

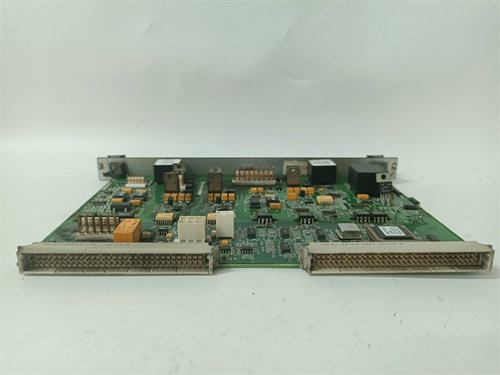

The GE IS200ERDDH1ABA is a highly specialized module used in industrial automation systems. Below is a summary of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters:
Input Voltage: Typically, it operates at 24V DC. However, some sources indicate a range of 18V to 30V DC.
Output Voltage Range: 0 to 10V DC.
Maximum Current Output: 1A.
Specifications and Features:
Compatibility: It is compatible with various industrial systems.
Communication Interfaces: The module supports communication through Ethernet and RS-485 interfaces.
Protection: It is equipped with overload and short-circuit protection.
Certifications: The module is certified for CE and RoHS compliance.
Operating Temperature: It can operate within a temperature range of -20°C to 60°C.
Dimensions and Weight:
Dimensions: It measures approximately 10cm x 15cm x 2cm (or 3.94″ x 5.91″ x 0.79″). Another source quotes dimensions of 170mm x 105mm x 32mm (or 6.69″ x 4.13″ x 1.26″), but these dimensions may refer to a different model or variant.
Weight: The module weighs approximately 2KG (or 4.41 lbs).
Series:
The GE IS200ERDDH1ABA belongs to the EX2100 series of products from GE.
Role and Function:
Control and Regulation: The IS200ERDDH1ABA serves as a control and regulation module in industrial automation systems. It can be used to control the excitation system of generators, ensuring their voltage and excitation current remain within desired ranges.
Voltage and Frequency Adjustment: It monitors the output voltage of generators and adjusts it as needed to maintain consistency with the power network. Additionally, it helps maintain the output frequency within desired ranges for system stability and quality.
