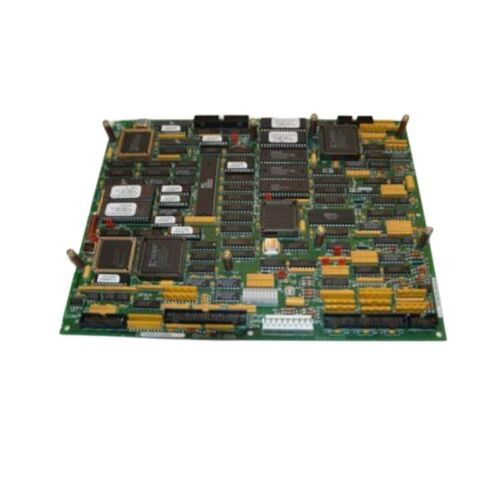

GE IS200ECTBG1A Parameters, Specifications, Dimensions, Weight, Series, Features, and Applications in English
Parameters and Specifications:
Model Number: IS200ECTBG1A.
Brand: GE (General Electric).
Main Function: Supports excitation contact input and output.
Operating Mode: Designated as 1A, it operates in a redundant mode.
Relay Control: Possesses the capability to control relay contact output and user contact input.
Dimensions and Weight:
Dimensions: 220mm x 165mm x 50mm (Width x Height x Depth).
Weight: Approximately 2KG.
Series:
The IS200ECTBG1A belongs to the EX2100 excitation controller series.
Features:
Outputs: The board has six different outputs, including two for driving user-locked trip contacts and four Form-C relay contact outputs controlled by the EMIO board.
Inputs: The board has six auxiliary contact inputs, all powered by a 70 VDC supply from the ECTB board.
Connectors: On the IS200ECTBG board, there are three pin connectors labeled J405, J408, and J415.
Isolation Voltage: During the ECTB model’s power supply process, there will be a 70 VDC isolation voltage.
Applications:
The IS200ECTBG1A is primarily used as a part of the excitation controller system, specifically in supporting excitation contact input and output functions. It plays a crucial role in industrial automation and control systems, ensuring precise and reliable excitation control.
