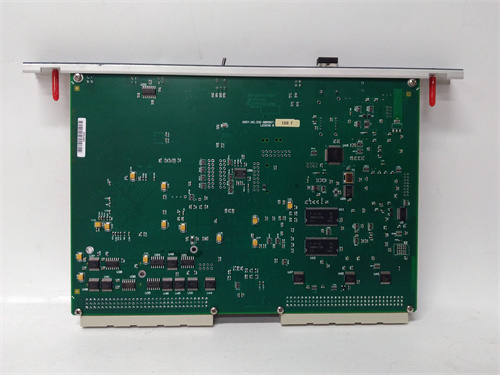

GE IC698RMX016

Description

Parameters and Specifications

• Memory: 16MB of SDRAM user memory¹
• Power Supply: Operating voltage of +5 V DC with a current requirement of 1.8A¹
• Temperature Range: Acceptable operating temperature range between -20°C and +85°C¹
• Connectors: IEC 61754-20 compliant optical LC-type connector with zirconia ceramic ferrule¹
• Optical Loss: Maximum insertion loss of 0.35 dB and return loss of -30 dB¹

Dimensions and Weight

• Size: 6.299 inches wide x 9.187 inches high¹

Series

• Part of the GE Fanuc’s Rx7I Pacsystem series¹

Features

• Redundancy: Designed as a redundant memory exchange module for Rx7I Pacsystem¹
• Compatibility: Requires PACSystems RX7i CPU with firmware version 2.00 or higher¹
• Configuration Options: Configurable parameters include redundant transmission mode, node ID, network memory offset, rogue master, and interrupt enable¹
• Communication: Provides data exchange with other components within the Rx7I Pacsystem¹

Applications and Role

• Industrial Automation: Used in industrial automation systems to provide redundant memory capabilities, ensuring system reliability and uptime¹
• Data Exchange: Facilitates data exchange between components within the Rx7I Pacsystem, enabling real-time monitoring and control¹
• System Enhancement: By providing redundant memory, the IC698RMX016 module enhances the overall system’s resilience and fault tolerance¹
