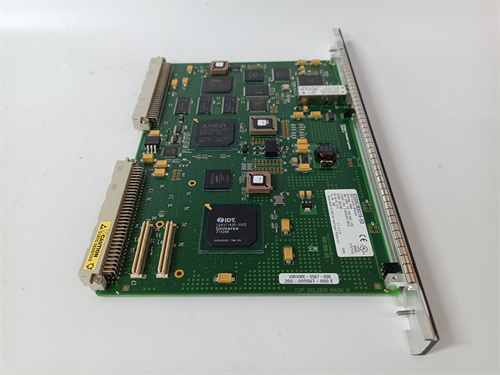

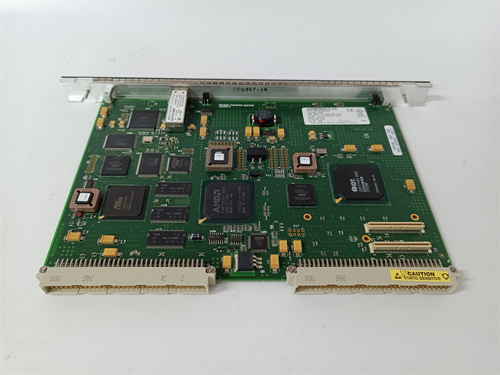

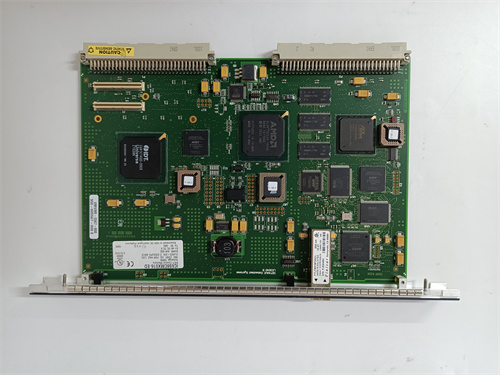

GE IC698CMX016

Description

Parameters and Specifications:

• Model: IC698CMX016
• Series: RX7i
• Manufacturer: Emerson Automation (Formerly GE Intelligent Platforms (GE IP))
• Memory: 16 MB Reflective Memory with Parity Check¹²⁶⁷
• Data Rate: 2.12 Gbaud¹²³⁴
• Maximum Distance: 300 meters or 984.25 feet¹²⁴
• Maximum Network Nodes: 256¹²⁶⁷
• Dynamic Packet Size Range: 4-64 bytes¹²⁴
• Maximum Network Transmission Rate: 43 MB/s for 4-byte packets to 174 MB/s for 64-byte packets¹²⁴

Dimensions and Weight:

• The exact dimensions and weight are not explicitly stated in the provided search results. However, since it is a module designed for rack mounting, it is likely to have standard rack-mountable dimensions.

Features:

• Reflective Memory Technology: Uses reflective memory technology to provide deterministic data sharing between PLCs and compatible devices over a fiber-optic network¹²⁶⁷.
• LC Fiber Port: Equipped with an LC fiber port that supports 2.12 Gbaud transmission speed on multi-mode fiber media¹²⁴.
• Daisy-Chain Connectivity: Supports daisy-chain connectivity through FO cables, allowing up to 256 nodes to be connected¹²³⁴.
• Redundant Transmission Mode: Supports redundant transmission mode operation¹²⁴.
• Status Indicators: Features various LED status indicators such as OK, Configuration, Proprietary Data, and Signal Detect².
• Independent Operation: Operates independently of the CPU, requiring no CPU processing².
• Compatibility: Compatible with VMIC 5565 series reflective memory devices¹².

Applications:

• The IC698CMX016 is a control memory exchange module from the PACSystem RX7i platform of programmable automation controllers (PAC). Its primary function is to enable deterministic data sharing between PLCs and compatible devices over a fiber-optic network using reflective memory technology¹²³⁴. This ensures efficient and reliable data transfer for various industrial automation and control applications.
